Name: Single Layer PLC Control 1250mm Ibr Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan tunggal
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Single Layer PLC Control 1250mm Ibr Roll Forming Machine

1250mm ibr roll forming machine

PLC Control ibr roll forming machine

Single Layer ibr roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Lapisan tunggal

Hubungi Kami

Minta Penawaran Harga

Single Layer PLC Control 1250mm Ibr Roll Forming Machine

Detail Produk

Nama Produk:

Kontrol PLC Lapisan Tunggal Mesin Roll Forming IBR 1250mm

Bahan mentah:

PL,GL,PPGL, PPGI

Kecepatan kerja:

15-20m per menit

Ketebalan material:

0,3 mm - 0,9 mm

Voltase:

380V 50Hz 3Phase

Kondisi:

Baru

Menyoroti:

1250mm ibr roll forming machine

PLC Control ibr roll forming machine

Single Layer ibr roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

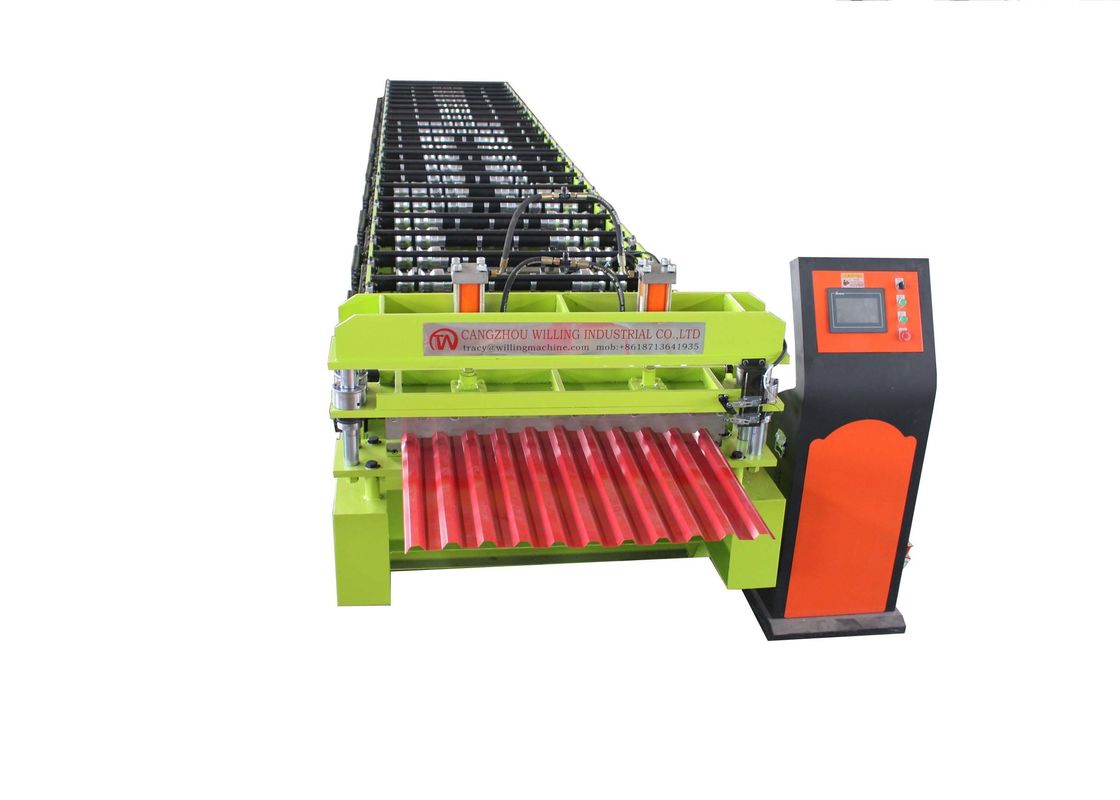

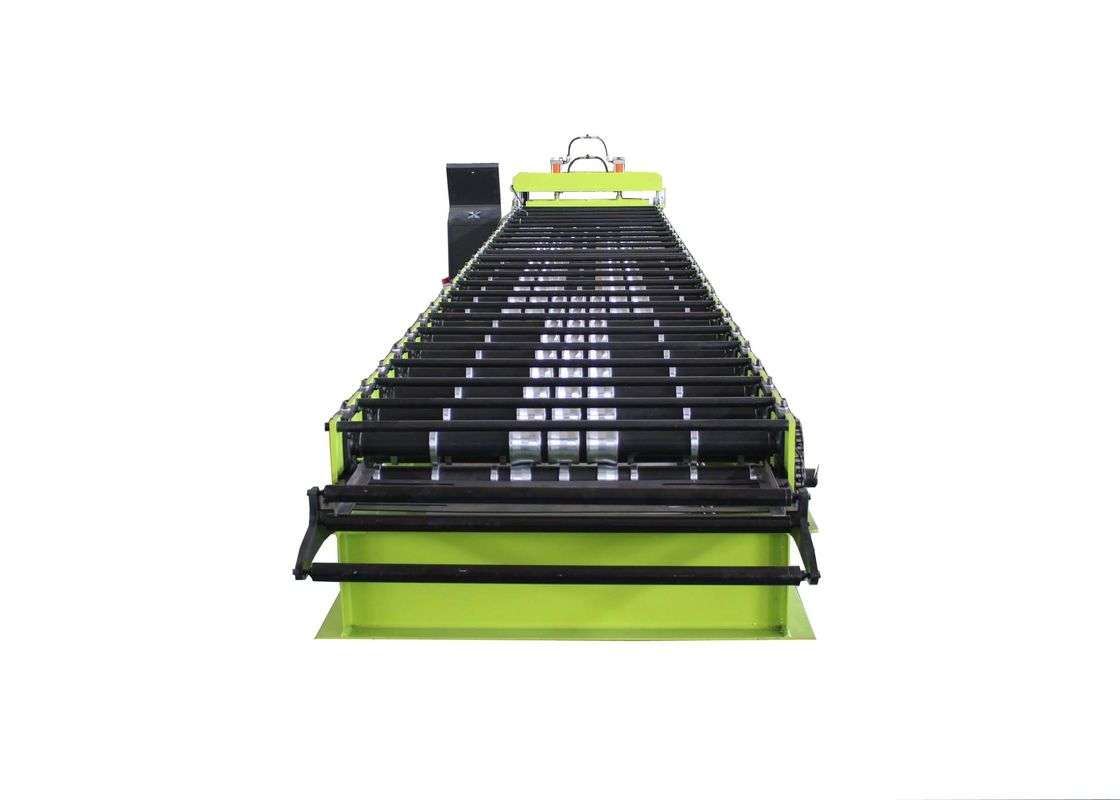

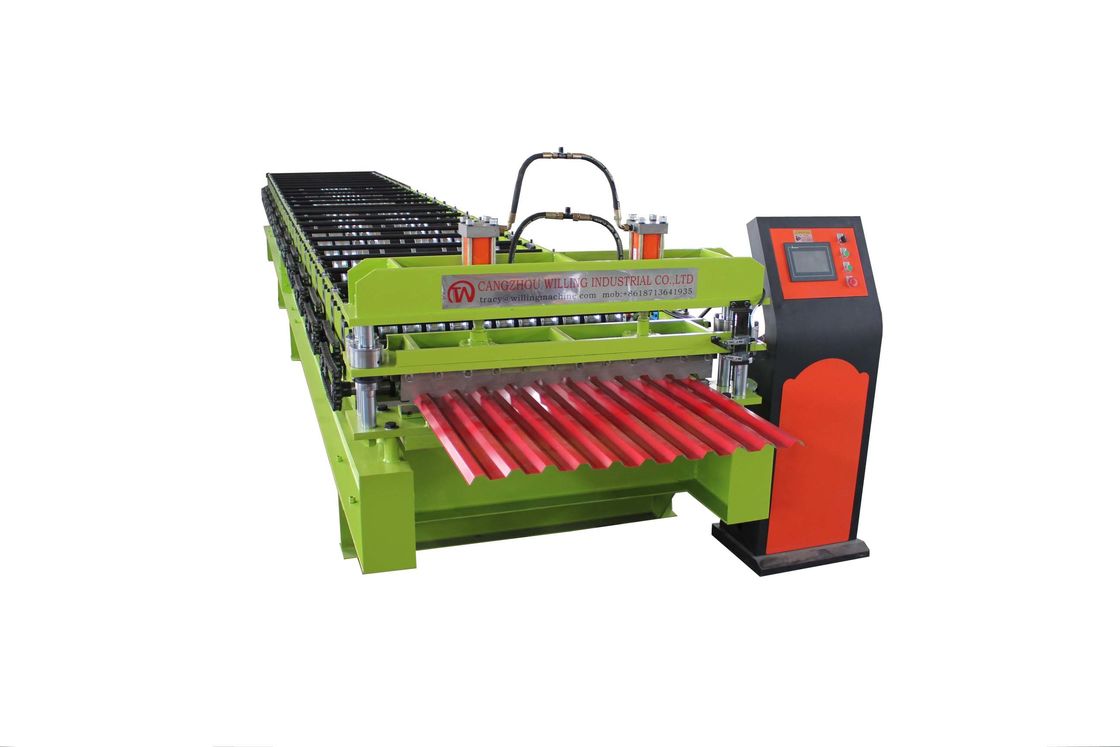

Single Layer PLC Control IBR 1250mm Roll Forming Machine

Single Layer PLC Control IBR 1250mm Roll Forming Machine is a kind of mechanical equipment that uses modern PLC control technology to realize programmed and automated production. The fully automatic tile press can be installed and used separately, or it can be equipped with automatic uncoiler, automatic packaging machine and other production lines.

Specification

No.	Item	Description
1	Coil	PL,GL,PPGI,PPGL
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	15-20 m/min
4	Roller Station	15 Stations
5	Dimension (LWH)	4500 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The products produced by our machine are widely used industry . For example, factories, warehouses, gymnasiums, exhibition halls, theaters, laboratories, prefabricated houses, etc. due to the color steel plate has the advantages of durability, long life, corrosion resistance, etc.so it also widely used in the chemical construction industry.

Advantage

Our roll forming machine consists of the following parts: the main body of the color steel tile press, the PLC computer control system, the hydraulic pump station system, and the automatic post-cutting system.
The entire unit automation control system adopts a highly integrated network to make the automation system perform better.
