PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine

PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine

0.8mm corrugated sheet rolling machine

plc corrugated sheet rolling machine

0.8mm corrugated sheet roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Bergelombang

Hubungi Kami
Minta Penawaran Harga
PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine PLC Control High Precision 0.8mm Corrugated Sheet Rolling Machine
Detail Produk
Deskripsi produk:
Kontrol PLC Mesin Roll Forming Atap Lembaran Bergelombang Presisi Tinggi
Ketebalan:
0.3-0.8mm
Bahan poros:
bahannya adalah baja tempa 45#
Dimensi (P*L*T):
8500mm*1500mm*1500mm
Sistem Pengendalian:
PLC
Kecepatan:
15-18 m/mnt
Voltase:
380V 50HZ 3PH
Berat:
4.5t
Tenaga Motorik:
4KW
tenaga motor pompa oli:
4KW
Menyoroti:

0.8mm corrugated sheet rolling machine

,

plc corrugated sheet rolling machine

,

0.8mm corrugated sheet roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
30 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

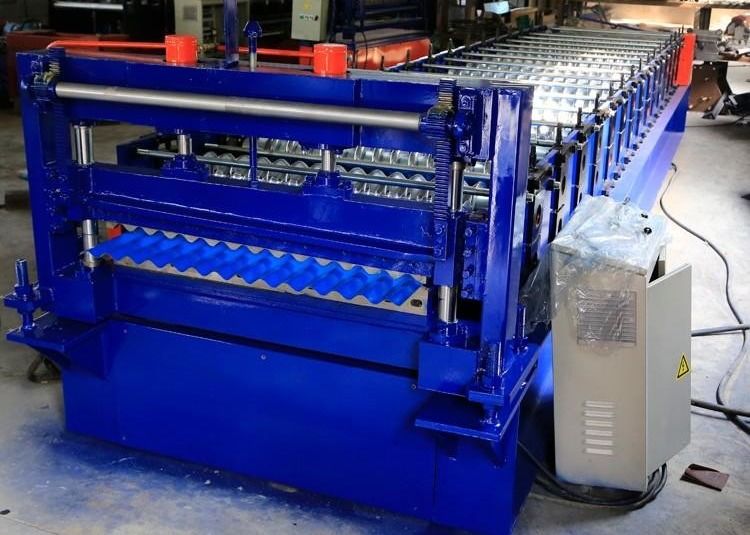

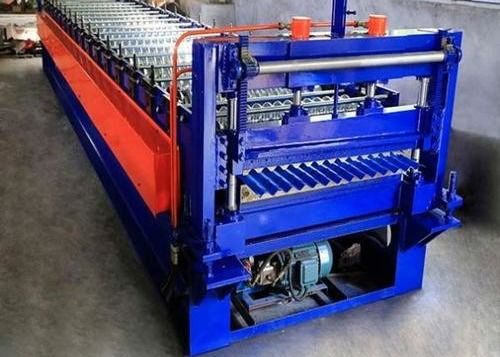

PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine



The fully automatic tile press is a mechanical equipment that uses modern electromechanical control technology to achieve programmed and automated production in the process of producing compacted tile blanks. The automatic tile press can be installed and used separately, and can be equipped with production lines such as automatic uncoiler and automatic packaging machine, which can be fully automated.




Equipment Detailed Parameters:



1

 Suitable Material PPGI PPGL GI GL

2

 Width of the raw material 1250mm
3 Rows of rollers 18 rows
4 Dimension 8500mm*1500mm*1500mm
5

Main servo

4 kw
6 Hydraulic station power 4 kw
7 Thickness of raw material 0.3-0.9mm

8

Productivity

 20-25m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The roof roll forming machine can produce various steel roofs and wall panels, mainly using color steel plates as raw materials. The products are widely used in the roofs and walls of warehouses, garages, stadiums, exhibition centers, cinemas, laboratories, theaters, etc. It has the advantages of convenient installation, short construction period, corrosion resistance, long service life, and high strength.



Advantage



PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine is composed of PLC control system, hydraulic pump station system, and automatic shearing system. This machine adopts high-number pulse input function, high-number input performance is excellent, AB phase anti-interference ability is strong. It has the characteristics of fast running speed, stability and high precision
