Name: Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Akhir
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine

15kw omega roll forming machine

steel omega roll forming machine

galvanized omega roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Akhir

Hubungi Kami

Minta Penawaran Harga

Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Omega Bagian Topi Baja Galvanis

Bahan mentah:

PPGI, Galvanis

Kecepatan:

8-12m / mnt

Ketebalan material:

0,5mm - 1,5mm

Berat:

3 ton

Jaminan:

1 tahun

Kekuatan:

15kw

Sistem Pengendalian:

PLC

Menyoroti:

15kw omega roll forming machine

steel omega roll forming machine

galvanized omega roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

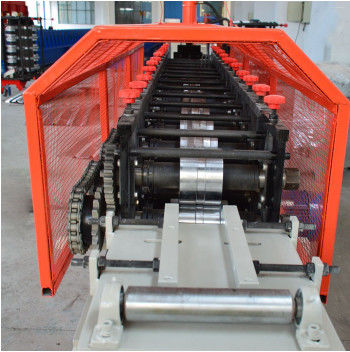

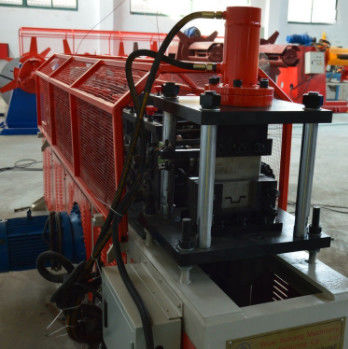

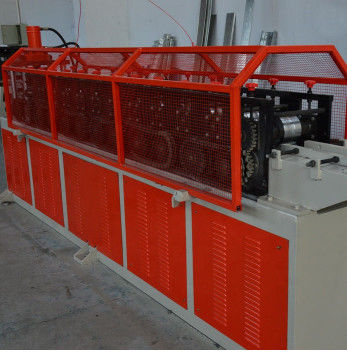

Galvanized Steel Top Hat Section Omega Roof Roll Forming Machine

Furring channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.

Specification

No.	Item	Description
1	Coil	PPGI,PPGL,GI,GL
	Material Thickness	0.5 mm- 1.5 mm
3	Working Speed	8-12 m/min ( not including the cutting time)
4	Roller Station	14 Raws
5	Dimension	55008001200
6	Machine Weight	3000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5.5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Light steel keel is used as a ceiling or wall keel, and is matched with various decorative panels (paper-faced gypsum board, mineral wool board, etc.) to form a light ceiling or partition wall, with its excellent thermal, acoustic, mechanical and technological properties And changeable decoration styles are widely used in decoration projects.

Advantage

Cangzhou willing has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
