Name: Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Melengkung Sudut yang Dapat Disesuaikan
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine

0.9mm Roof Roll Forming Machine

4KW Roof Roll Forming Machine

curving adjustable angle roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Melengkung Sudut yang Dapat Disesuaikan

Hubungi Kami

Minta Penawaran Harga

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Sudut Melengkung yang Dapat Disesuaikan

Bahan mentah:

PPGL,GL,PPGI,GI,

Sistem kontrol:

Otomatis

Ketebalan:

0,6-0,9mm

Jenis ubin:

Pembengkokan

Kisaran sudut:

15 derajat-90 derajat

Sistem Pengendalian:

PLC

Tenaga Motorik:

4KW

Menyoroti:

0.9mm Roof Roll Forming Machine

4KW Roof Roll Forming Machine

curving adjustable angle roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

40 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

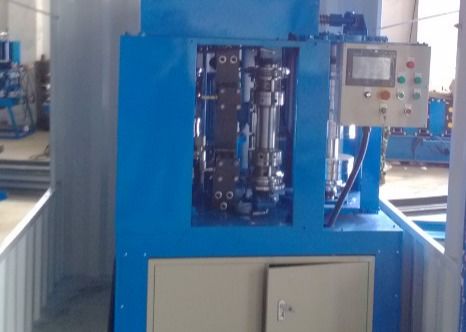

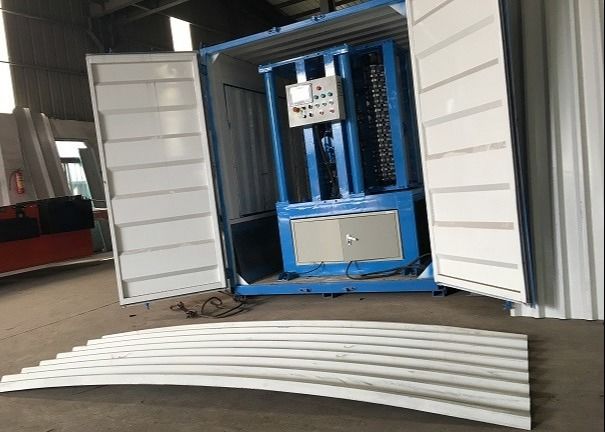

Curving Adjustable Angle Roof Roll Forming Machine

The curved arch roof color steel roof forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control, and the angle can be adjusted through the PLC control system, the angle range is 15-90 degrees, so as to better meet the needs of customers in different application scenarios

Specification

No.	Item	Description
1	Coil	PPGI PPGL GI GL
2	Raw Material Thickness	0.6-0.9mm
3	Working Speed	90Deg/2 min
4	Roller Station	3 Raws
5	Dimension (LWH)	2800 mm1200 mm1800mm
6	Machine Weight	2000 KG
7	Electrical Control System	Automatic
8	Drive Motor Power	4KW+4KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Curved roofs are usually used on roofs or eaves. To a large extent, it can effectively guide rainwater from the roof to the ground. This roof system prevents water accumulation and is widely used in workshop roofs, garage roofs, apartment roofs, shopping mall roofs, laboratory roofs, etc.

Advantage

The curved color steel roof produced by this machine is not easy to be damaged and can be folded into a thinner steel sheet. It has the advantages of light weight, high strength, and heat insulation. Color steel roof is widely used in large-span activity workshops, warehouses, office buildings, villas, air-purified houses, cold storages, shops, etc. Because of its low cost and easy installation, it can save customers a lot of cost.

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine 0
