Name: Long Span PLC Control 15m/Min Speed Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rentang panjang
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Long Span PLC Control 15m/Min Speed Roof Roll Forming Machine

15m/Min Speed Roof Roll Forming Machine

PLC Control Roof Roll Forming Machine

PLC Control sheet roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Rentang panjang

Hubungi Kami

Minta Penawaran Harga

Long Span PLC Control 15m/Min Speed Roof Roll Forming Machine

Detail Produk

Deskripsi produk:

Kontrol PLC Rentang Panjang Mesin Roll Forming Atap Berkecepatan Tinggi

Ketebalan:

0,3-0,9 mm

Bahan poros:

bahannya adalah baja tempa 45#

Dimensi (P*L*T):

8400mm*1600mm*1500mm

Sistem Pengendalian:

PLC

Kecepatan:

15-20 m/mnt

Voltase:

380V 50HZ 3PH

Berat:

Tenaga Motorik:

4KW

tenaga motor pompa oli:

4KW

Menyoroti:

15m/Min Speed Roof Roll Forming Machine

PLC Control Roof Roll Forming Machine

PLC Control sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

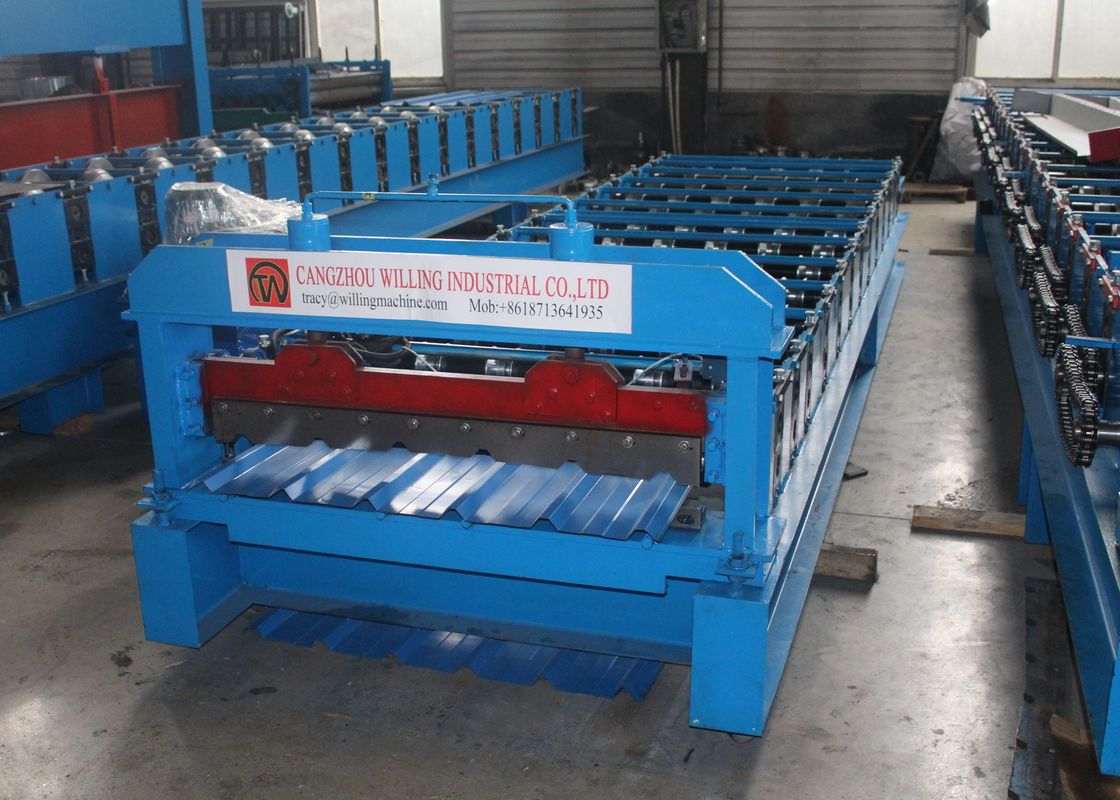

Long Span PLC Control High Speed Roof Roll Forming Machine

The Nigeria long span roll forming machine is a machine specially developed for the Nigerian market. This machine has the characteristics of high efficiency, low labor intensity, low energy consumption and low noise. Since the machine is equipped with a PLC control system, the entire machine can be operated by one or two people. The machine occupies a small area and has a reasonable design. Very suitable for small sites and on-site construction.

Equipment Detailed Parameters:

1	Suitable Material	PPGI PPGL GI GL
2	Width of the raw material	1250mm
3	Rows of rollers	18rows
4	Dimension	250017501650mm
5	Main servo	4kw
6	Hydraulic station power	4kw
7	Thickness of raw material	0.3-0.9mm
8	Productivity	15-25m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The products produced by Nigeria's large-span molding machine are widely used in industry and civil construction. For example, factories, warehouses, gymnasiums, exhibition halls, theaters, laboratories, prefabricated houses, etc. Because the color steel plate has the advantages of durability, long life, corrosion resistance, etc., it is also used in the chemical construction industry.

Advantage

The Nigeria large-span forming machine is composed of: the main body of the color steel tile press, the PLC computer control system, the hydraulic pump station system, and the automatic post-cutting system. The machine adopts high-number pulse input function, high-number input performance is excellent, AB phase anti-interference ability is strong. It is also equipped with a fixed value interrupt function to ensure accuracy.
