Name: Curving Pressure Galvalume 4kw Automatic Steel Bending Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lengkungan otomatis
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Curving Pressure Galvalume 4kw Automatic Steel Bending Machine

Galvalume automatic steel bending machine

Galvalume automatic bending machine

4kw automatic steel bending machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Lengkungan otomatis

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Bending Tekanan Melengkung Otomatis

Bahan mentah:

Galvalum, Galvanis, PPGI, PPFL,

Sistem kontrol:

petunjuk

Ketebalan:

0,2-0,9 mm

Jenis ubin:

Pembengkokan

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4KW

Menyoroti:

Galvalume automatic steel bending machine

Galvalume automatic bending machine

4kw automatic steel bending machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

40 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

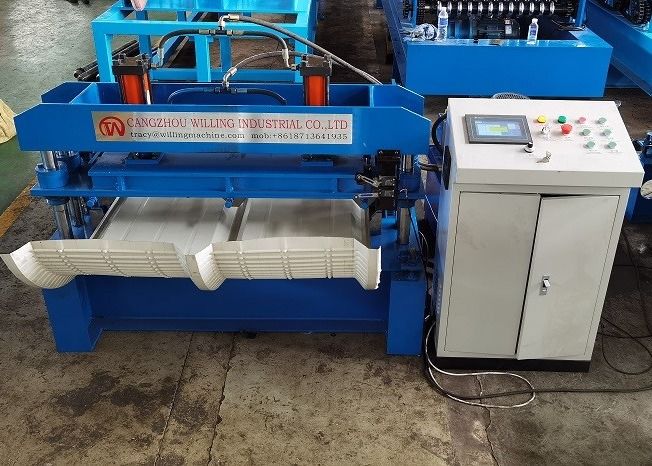

Auomatic curving Pressure Bending Roof Roll Forming Machine

In order to meet the special requirements of customers for roof shapes, we have introduced a manual crimping and bending roof coil forming machine. This machine has changed the cold pressing mode of the previous machine. Use the roller to change the shape of the roof slab. This production method is suitable for thin and easily damaged panels. Due to its low cost, small footprint, and simple operation, this equipment is used by customers to produce roof color steel plates.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	0-15 m/min
4	Roller Station	3 Raws
5	Dimension (LWH)	520 mm520 mm1200 mm
6	Machine Weight	500 KG
7	Electrical Control System	Manual
8	Drive Motor Power	4KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively it widely used in garage roofs, workshop roofs, prefab roofs, laboratory roofs, apartment roofs, etc.

Advantage

The color steel plate is made of color steel, which has good carrying capacity and durability. In a hot or low temperature environment, the surface of the tile will not be damaged or cracked and the color can be kept stable.
Because the color steel plate has the advantages of low density, no water absorption, no microporous water seepage, etc., the waterproof effect is very good.

Curving Pressure Galvalume 4kw Automatic Steel Bending Machine 0
