Name: Hat Channel Omega Cz Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Saluran topi
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Hat Channel Omega Cz Purlin Roll Forming Machine

omega cz purlin roll forming machine

channel cz purlin roll forming machine

hat cz purlin roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Saluran topi

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Saluran Topi Omega CZ Purlin

Bahan mentah:

PPGI, Galvanis

Kecepatan:

15-20m / mnt

Ketebalan material:

1 mm - 3 mm

Berat:

9 ton

Jaminan:

1 tahun

Kekuatan:

15kw

Sistem Pengendalian:

PLC

Menyoroti:

omega cz purlin roll forming machine

channel cz purlin roll forming machine

hat cz purlin roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

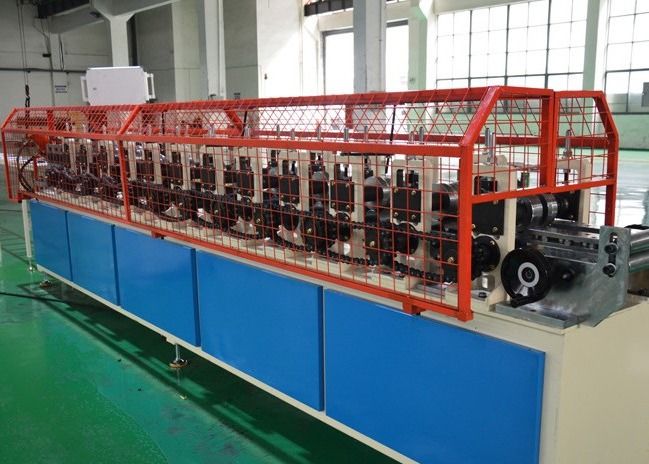

Hat Channel Omega CZ Purlin Roll Forming Machine

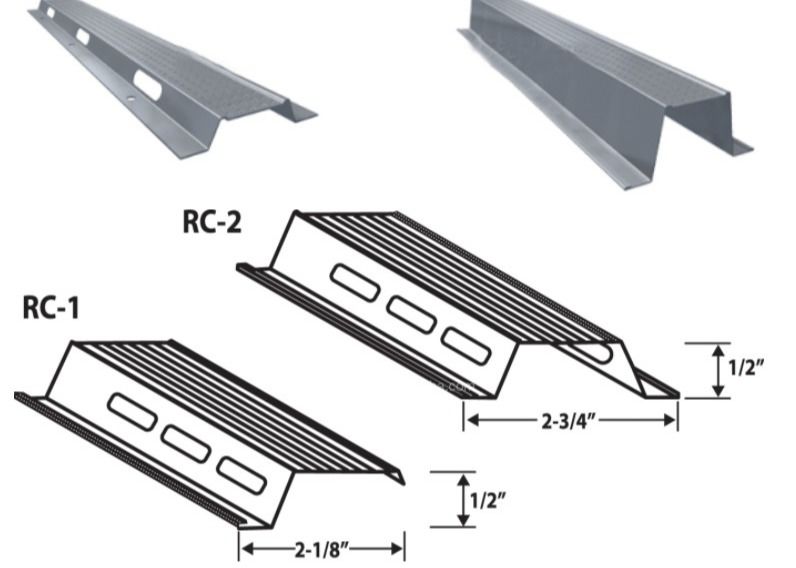

Omega channel roll forming machine can produce roof slats and ceiling slats of 40mm, 43mm, 61mm and any other size you need.
We can help customers to design machines according to the different requirements of logo punching and embossing, and we can work with customer team to create a good shape with the special characters of customer factory

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	14 Raws
5	Dimension	650013001200
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

hat channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.

Advantage

Hat Channel CZ Purlin Roll Forming Machine equipment with servo motor tracking cutting system can produce 15-20 meters per min ,
Machine body is pillar structural, with safety protection cover.
There are two encoder to measure the length of the cutting productus
PLC is world famous PLC system.

Hat Channel Omega Cz Purlin Roll Forming Machine 0
