Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >
High Speed Low Noise Ppgi Purlin Forming Machine

High Speed Low Noise Ppgi Purlin Forming Machine

low noise purlin forming machine

high speed purlin forming machine

ppgi purlin forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Mesin C&Z

Hubungi Kami
Minta Penawaran Harga
High Speed Low Noise Ppgi Purlin Forming Machine
High Speed Low Noise Ppgi Purlin Forming Machine High Speed Low Noise Ppgi Purlin Forming Machine High Speed Low Noise Ppgi Purlin Forming Machine High Speed Low Noise Ppgi Purlin Forming Machine High Speed Low Noise Ppgi Purlin Forming Machine
Detail Produk
Nama Produk:
Mesin Roll Forming CZ Purlin Berkecepatan Tinggi Dan Kebisingan Rendah
Bahan mentah:
Galvalum, PPGI,GI
Dimensi (P*L*T):
9500 mm*1400 mm* 2000
Ketebalan material:
1 mm - 3 mm
Berat:
8 t
Kapasitas Produksi:
20-25m/mnt
Voltase:
380V/50Hz/3ph
Tenaga motor utama::
15kw
Motor hidrolik:
22kw
Tekanan hidrolik:
20mpa
Menyoroti:

low noise purlin forming machine

,

high speed purlin forming machine

,

ppgi purlin forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction on line Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik
Harga bagus Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings on line Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency on line Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel on line Video

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

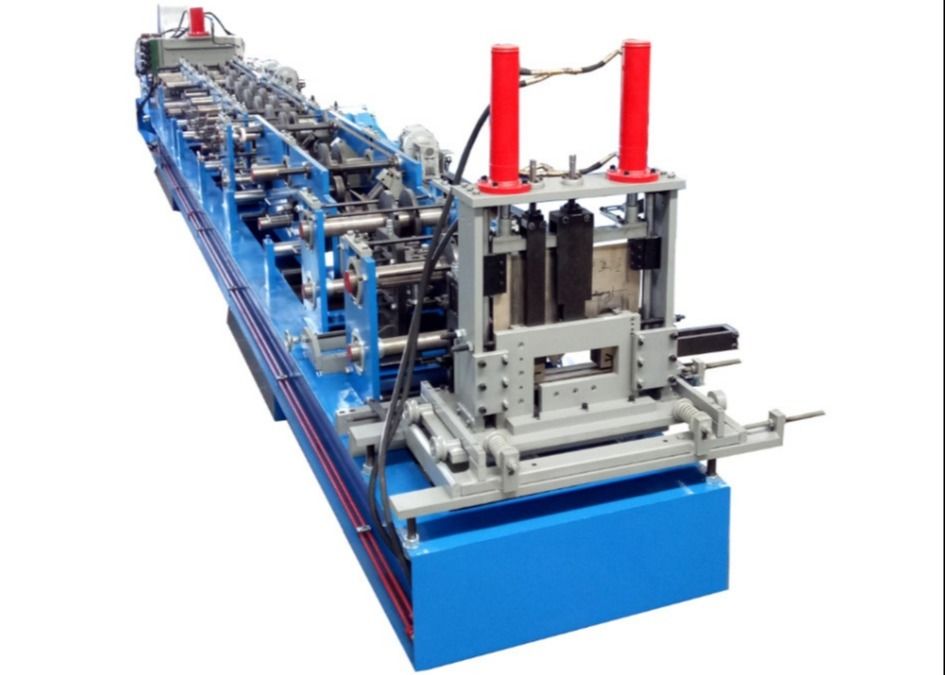

High Speed And Low Noise CZ Purlin Roll Forming Machine



The CZ purlin roll forming machine is a machine that combines the C-type and Z-type machines into one. Manually rotate the fixed rotating plate to realize CZ interchange. The length, quantity, and longitudinal hole distance of the pur strip can be automatically carried out. The equipment is stable and reliable in operation, with high punching accuracy and high output. At the same time, it is also suitable for most users. Save production space.


Specification



No. Item Description
1 Coil Galvanized
2 Material Thickness  1 mm- 3 mm
3 Working Speed 20- 25 m/min
4 Roller Station 12-16 Raws
5

Dimension (L*W*H)

 9500 mm*1400 mm*2000 mm
6 Machine Weight 8000 KG
7

Electrical Control System

Panasonic PLC
8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 22 KW
10

Power Supply

360V/60HZ/3PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application

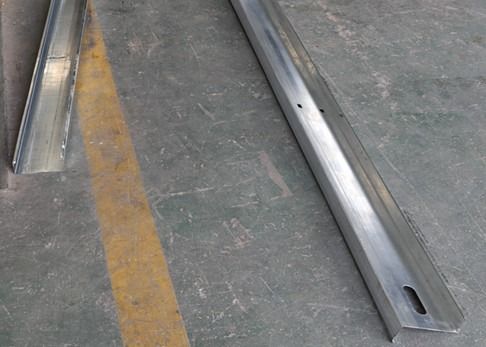

The products of C & Z prulin roll forming machine produce have excellent bending resistance and easy to install. They are widely used as supports for roofs and walls of large and medium-sized buildings such as factories and warehouses, garages, exhibition centers, cinemas, theatres, gardens, etc.



Advantage



The advantages of C& Z purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side





High Speed Low Noise Ppgi Purlin Forming Machine 0
