Three Layer 0.3mm Roof Sheet Forming Machine Plc

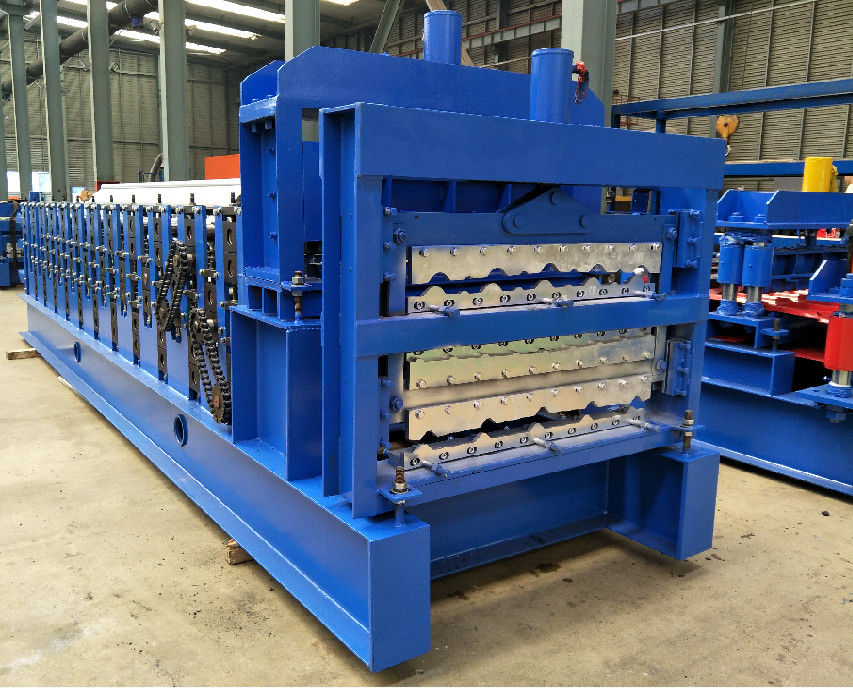

Three Layer 0.3mm Roof Sheet Forming Machine Plc

three layer roofing roll forming machine

0.3mm roof sheet forming machine

plc roof sheet forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Tiga Lapisan

Hubungi Kami
Minta Penawaran Harga
Three Layer 0.3mm Roof Sheet Forming Machine Plc
Three Layer 0.3mm Roof Sheet Forming Machine Plc
Detail Produk
Deskripsi produk:
Mesin Roll Forming Trapesium Tiga Lapisan Dan Atap Mengkilap
Ketebalan:
0.3-0.8mm
Bahan poros:
bahannya adalah baja tempa 45#
Dimensi (P*L*T):
2310*1750*1650mm
Sistem Pengendalian:
PLC
Kecepatan:
15-20m/mnt
Voltase:
380V 50HZ 3PH
Berat:
7T
Tenaga Motorik:
4KW
tenaga motor pompa oli:
4KW
Menyoroti:

three layer roofing roll forming machine

,

0.3mm roof sheet forming machine

,

plc roof sheet forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
30 set per bulan
Produk terkait
Harga bagus High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Double Layer Trapezoid And Glazed Roof Roll Forming Machine


 The components of the three-layer tile machine include: the color steel tile press machine, the PLC computer control system, the hydraulic pump station system, and the fully automatic post-shearing system. Equipment features: the color steel plate equipment adopts high-level automatic control software, color steel The tile press realizes production information management.
The entire unit automation control system adopts a highly integrated network to make the automation system perform better.
Automatic discharging, color steel tile press working procedure: mold installation and host test run are the same as above, and then turn on the air compressor, vacuum pump, extruder, tile cutter, feeder tile press, color steel tile press And wato conveyor, when parking, first stop the extruder, and then stop the rest of the equipment.




Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Width of the raw material 1250mm
3 Rows of rollers 15 rows & 16 rows
4 Dimension 2310*1750*1650mm
5

Main servo

4kw
6 Hydraulic station power 4kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

 15-20m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The three-layer tile machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production are smooth and beautiful, uniform paint pattern, high strength, and durable. They are widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, Theaters and other rooms and walls.



Advantage



Our company's three-layer tile machine adopts the function of high-number pulse input. Because of the excellent high-number input performance, the AB phase anti-interference ability is strong. The fixed value interrupt function is also used to ensure accuracy.
One machine has multiple functions, which not only saves the floor space, but also greatly reduces the cost. The three-layer tile machine has a light structure and a reasonable design, which is especially suitable for customers with small sites and on-site construction.



Three Layer 0.3mm Roof Sheet Forming Machine Plc 0
