Name: Double Layer Trapezoid And Glazed Roof Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Double Layer Trapezoid And Glazed Roof Panel Roll Forming Machine

trapezoid roof panel roll forming machine

glazed roof panel roll forming machine

trapezoid double layer roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Mesin Roll Forming Trapesium Lapisan Ganda Dan Atap Mengkilap

Ketebalan:

0.3-0.8mm

Bahan poros:

bahannya adalah baja tempa 45#

Dimensi (P*L*T):

9500*1550*1500mm

Sistem Pengendalian:

PLC

Kecepatan:

15-20m/mnt

Voltase:

380V 50HZ 3PH

Berat:

6.5T

Menyoroti:

trapezoid roof panel roll forming machine

glazed roof panel roll forming machine

trapezoid double layer roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Double Layer Trapezoid And Glazed Roof Roll Forming Machine

The double-layer roof calendering machine can make two different contour drawings on one machine, which can save more space and money than using two different machines.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	730015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two types of equipment into one. That is to say, it saves floor space, and the equipment cost of the double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layered tile machine is not only solemn and elegant, but also beautiful and novel. And the appearance is flat, the corrugation is uniform, and the utilization rate is high.

Advantage

The double-layer tile machine equipment adopts PLC control system and electric control system with text screen display. Easy to operate and easy to use The double-layer tile press equipment adopts high-level automatic control software. Realize production information management, and the entire unit automation control system adopts a highly integrated network. To make the performance of the automation system more superior, the color steel tile equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.

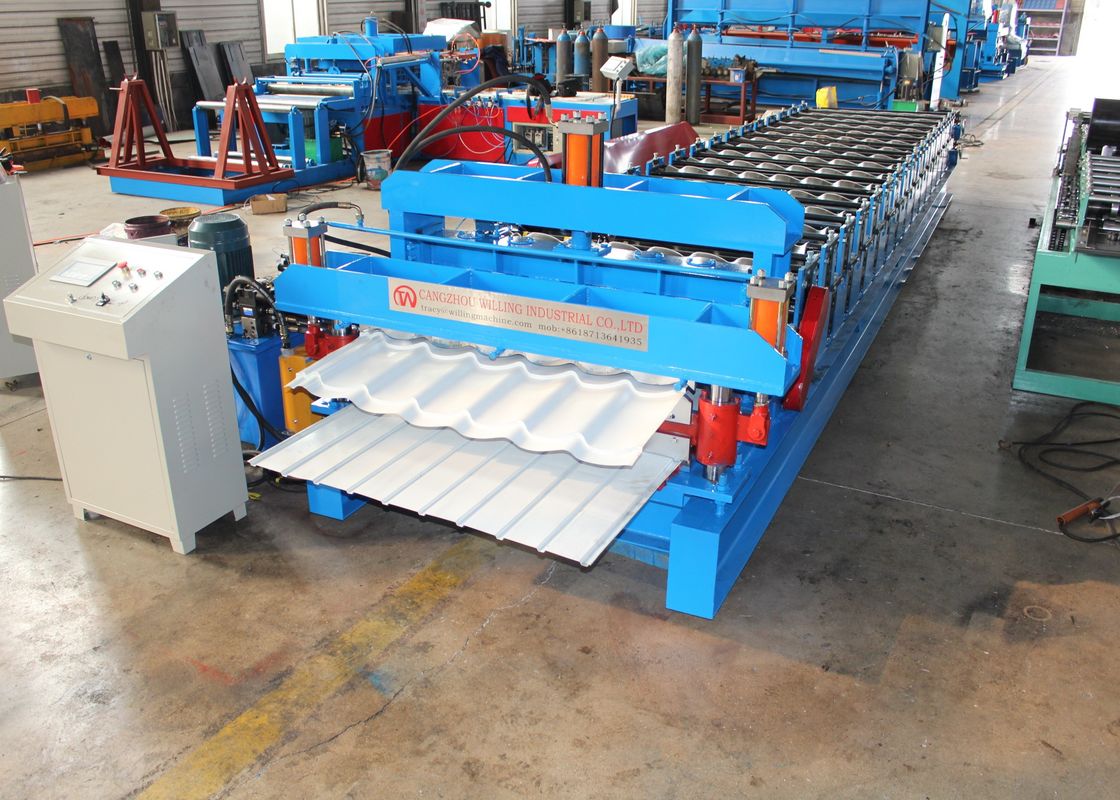

Double Layer Trapezoid And Glazed Roof Panel Roll Forming Machine 0
