Ibr 686 High Speed 0.25mm Roof Tile Roll Forming Machine Portable

0.25mm roof tile roll forming machine

ibr roof tile roll forming machine

ibr portable roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

IBR

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

IBR 686 Mesin Roll Forming Genteng Produktif Berkecepatan Tinggi

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Bahan mentah:

Lembaran PPGI/Galvanis

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Kecepatan:

15-20m/mnt

Ketebalan:

0,25mm-0,6mm

Kekuatan:

3kw

LEBAR BAHAN BAKU:

925mm

Daya Stasiun Hidrolik:

3kw

Menyoroti:

0.25mm roof tile roll forming machine

ibr roof tile roll forming machine

ibr portable roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

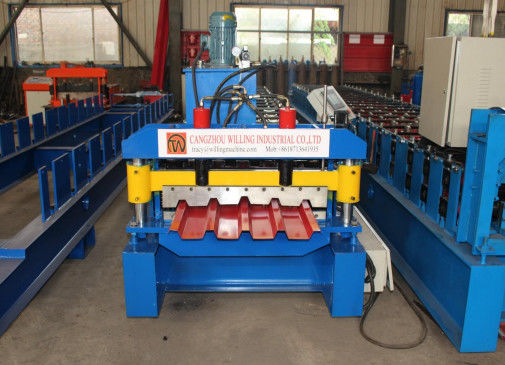

IBR 686 High Speed Productive Roof Tile Roll Forming Machine

IBR 686 is our company’s main model in the Zimbabwe market. The version produced by it has a usage rate of up to 90% in Zimbabwe. Because of the stable operation, high efficiency and low energy consumption of the machine, it can effectively save customers production costs and labor costs. .

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.25-0.6mm
3	Working Speed	15-20/min
4	Roller Station	18 Raws
5	Dimension (LWH)	8500 mm1200 mm1200 mm
6	Machine Weight	4800 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This type of tile is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses. The anti-corrosion materials of the tile are polyester, silicon modified polyester, polyvinyl fluoride and plastisol, etc. It has anti-corrosion and acid-resistant effects, so its service life is 10-15 years

Advantage

This version is mostly used for roofing, wall and interior and exterior wall decoration of buildings, warehouses, special buildings, large-span steel structure houses, etc. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. Features such as, protection-free, etc., have been widely implemented.
