Name: 3KW Manual Crimping Bending 0.9mm Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Crimping Manual
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

3KW Manual Crimping Bending 0.9mm Roof Roll Forming Machine

0.9mm roof roll forming machine

3KW roof roll forming machine

PPGI roof roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Crimping Manual

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Bending Crimping Manual

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

petunjuk

Ketebalan:

0,2-0,9 mm

Jenis ubin:

Pembengkokan

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

3kw

Menyoroti:

0.9mm roof roll forming machine

3KW roof roll forming machine

PPGI roof roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

40 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

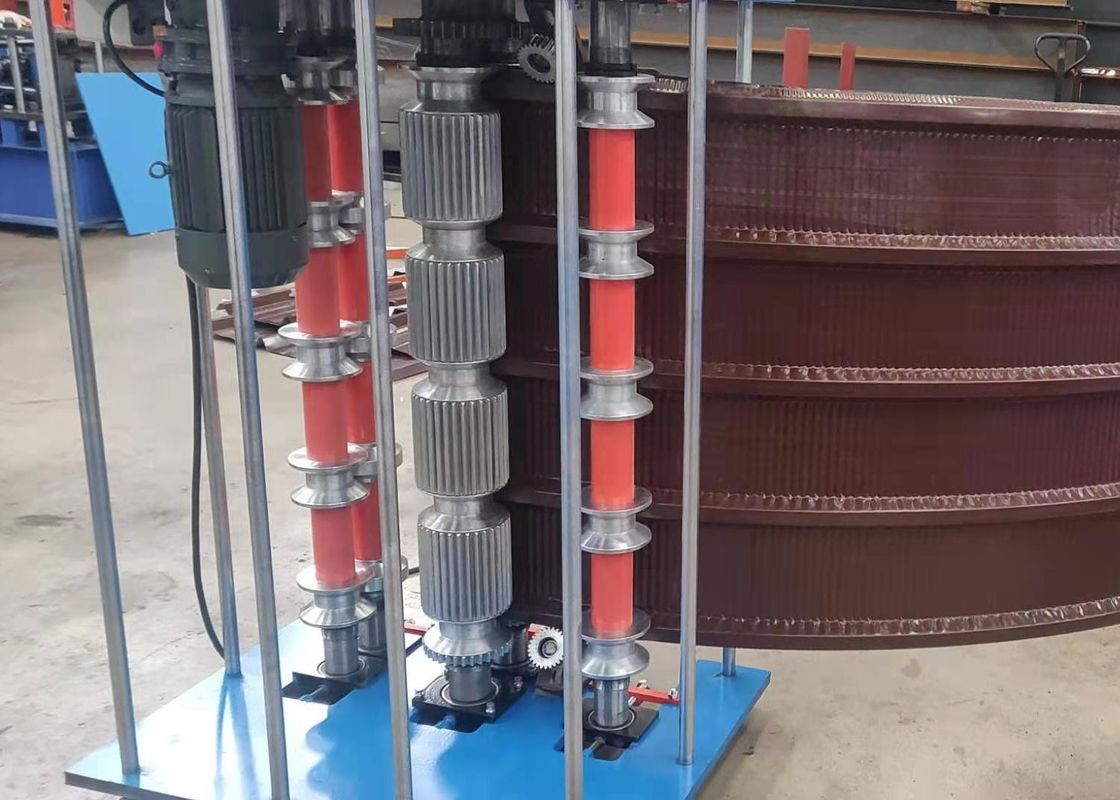

Manual Crimping Bending Roof Roll Forming Machine

In order to meet the special requirements of customers for roof shapes, we have introduced a manual crimping and bending roof coil forming machine. This machine has changed the cold pressing mode of the previous machine. Use the roller to change the shape of the roof slab. This production method is suitable for thin and easily damaged panels. Due to its low cost, small footprint, and simple operation, this equipment is used by customers to produce roof color steel plates.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	0-15 m/min
4	Roller Station	3 Raws
5	Dimension (LWH)	2000 mm1200 mm1100 mm
6	Machine Weight	1000 KG
7	Electrical Control System	Manual
8	Drive Motor Power	3KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The tiles produced by this equipment have the characteristics of easy drainage and low cost, so they are commonly used in garage roofs, workshop roofs, prefab roofs, laboratory roofs, apartment roofs, etc.

Advantage

(1) Large carrying capacity
The color steel tile is made of color steel plate and has good carrying capacity. In harsh environments, even if there is often snow on the roof, the surface of the tiles will not be damaged or cracked.
(2) The color lasts
The colored steel roof tiles are made by pressing colored coated steel plates, so there is no need to paint the surface. In this way, colored steel ridge tiles have extraordinary durability in natural environments, and can maintain color stability even in harsh environments.
(3) Waterproof
The material of the colored steel ridge tile is metal, so the density is small, it does not absorb water, and there is no problem of microporous water seepage. In addition, the color steel roof ridge tile has a large single-layer area, few roof joints, and tight joints, which enhances the waterproof effect.

3KW Manual Crimping Bending 0.9mm Roof Roll Forming Machine 0
