Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >
80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine

80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine

300mm cz purlin roll forming machine

120mm cz purlin roll forming machine

galvalume cz purlin roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Mesin C dan Z

Hubungi Kami
Minta Penawaran Harga
80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine
80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine
Detail Produk
Nama Produk:
C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Mesin Roll Forming
Bahan mentah:
Galvalum, PPGI
Dimensi (P*L*T):
9500 mm*1400 mm* 2000
Ketebalan material:
1 mm - 3 mm
Berat:
9t
Kapasitas Produksi:
10-25m/mnt
Voltase:
380V/50Hz/3ph
Tenaga motor utama::
15kw
Motor hidrolik:
22kw
Tekanan hidrolik:
18-20Mpa
Menyoroti:

300mm cz purlin roll forming machine

,

120mm cz purlin roll forming machine

,

galvalume cz purlin roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction on line Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik
Harga bagus Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings on line Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency on line Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel on line Video

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Roll Forming Machine



C & Z shape purline forming machine can produce both C &Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.


Specification



No. Item Description
1 Coil Galvanized
2 Material Thickness  1 mm- 3 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 12-16 Raws
5

Dimension (L*W*H)

 9500 mm*1400 mm*2000 mm
6 Machine Weight 9000 KG
7

Electrical Control System

Panasonic PLC
8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 22 KW
10

Power Supply

360V/60HZ/3PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



The products of C & Z purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.



Advantage



CZ purlin roll forming machine is a type C machine and a Z machine into one. It is controlled by the PLC computer in a short period of time to realize the exchange of the purlins of the two models of CZ. It is manual Rotate the fixed rotating plate to realize the CZ interchange. The length, quantity, longitudinal hole distance and other parameters of the purlin can be automatically carried out, and this equipment is stable and reliable in operation, the punching hole is high in precision, and the output is high. At the same time, it is also for the majority of users. Save production space.

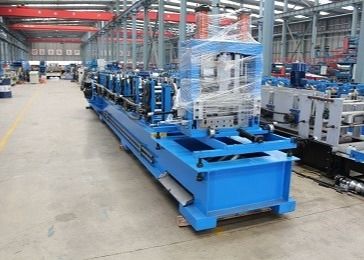

80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine 0
