Name: Channel Adjustable 25m/Min Cz Purlin Roll Forming Machine For 3mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: mesin c dan z purlin
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Channel Adjustable 25m/Min Cz Purlin Roll Forming Machine For 3mm

25m/min cz purlin roll forming machine

channel adjustable cz purlin machine

3mm cz purlin roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

mesin c dan z purlin

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Simi - Mesin Roll Forming Purlin Atap Logam Otomatis Kaki C Purlin

Bahan mentah:

Galvalum, Galvanis

Dimensi (P*L*T):

7000 mm*1500 mm* 1500

Ketebalan material:

1 mm - 3 mm

Berat:

4.5t

Kapasitas Produksi:

10-25m/mnt

Voltase:

380V/50Hz/3ph

Tenaga motor utama::

15kw

Menyoroti:

25m/min cz purlin roll forming machine

channel adjustable cz purlin machine

3mm cz purlin roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

High Productive CZ Channel Adjustable CZ Purlin Roll Forming Machine

High Productive CZ Channel Adjustable CZ Purlin Roll Forming Machine is mainly a equipment that combines C-type machine and a Z-type machine.
This equipment that allow operator to exchange C Z two type of purlin in short time through PLC computer control system .

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

the product of C and Z roll forming machine produce widely used in purlins and wall beams in structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components. In addition, it can also be used for columns, beams and arms in light machinery manufacturing.
Application in the move room. The sprayed C and Zshaped steel is used as beams, supports and ties. Its safety factor is quite high, and its load-bearing capacity can also be satisfied. It can also be used in the roof to support roof panels and wall panels.

Advantage

The C-type purlin has very good straightness and has good compression and bending resistance. The Z-type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased.

The fully automatic CZ interchange purlin machine has a fully automatic electric control system and an error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor plus variable frequency control, speed control, and fixed-length positioning. It has also become much more accurate and reliable.

This kind of forest adjustment can press two different profiles of CZ, and it can realize the conversion of two types of profiles without changing the forming roller. The speed is very fast and the efficiency is very high.

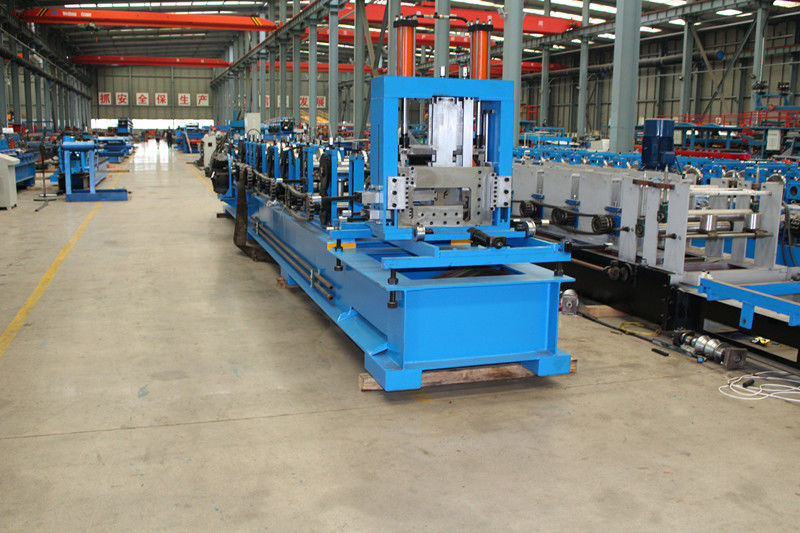

Channel Adjustable 25m/Min Cz Purlin Roll Forming Machine For 3mm 0
