Rumah > Produk > Mesin pembentuk gulungan pintu rana >
Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine

Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine

rolling shutter door slats roll forming machine

30m/min shutter door roll forming machine

20m/min shutter door roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Bilah Rana

Hubungi Kami
Minta Penawaran Harga
Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine
Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine
Detail Produk
Nama Produk:
Mesin Roll Forming Metal Shutter Slat Bekerja Kecepatan Tinggi 20-30 M / Min
Bahan mentah:
Galvalum, Galvanis, PPGI
Kecepatan kerja:
20m/menit - 30m/menit
Ketebalan material:
0,8 mm - 1,0 mm
Voltase:
380V 50Hz 3Phase
Kondisi:
Baru
Warna:
Sesuai permintaan pelanggan
Berat mesin:
4 ton
Kekerasan bahan mentah:
Q235
Kekuatan:
3kw
Menyoroti:

rolling shutter door slats roll forming machine

,

30m/min shutter door roll forming machine

,

20m/min shutter door roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Metal Shutter Slat Roll Forming Machine Working High Speed 20-30 M / Min



Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.8mm - 1.0 mm
3 Working Speed 20-30 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

 5500 mm*800 mm*1200 mm
6 Machine Weight 4 tons
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 3 KW
9

Hydraulic Station Power

 3 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 1 mm
12

Driving Mode

Gear Wheel
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

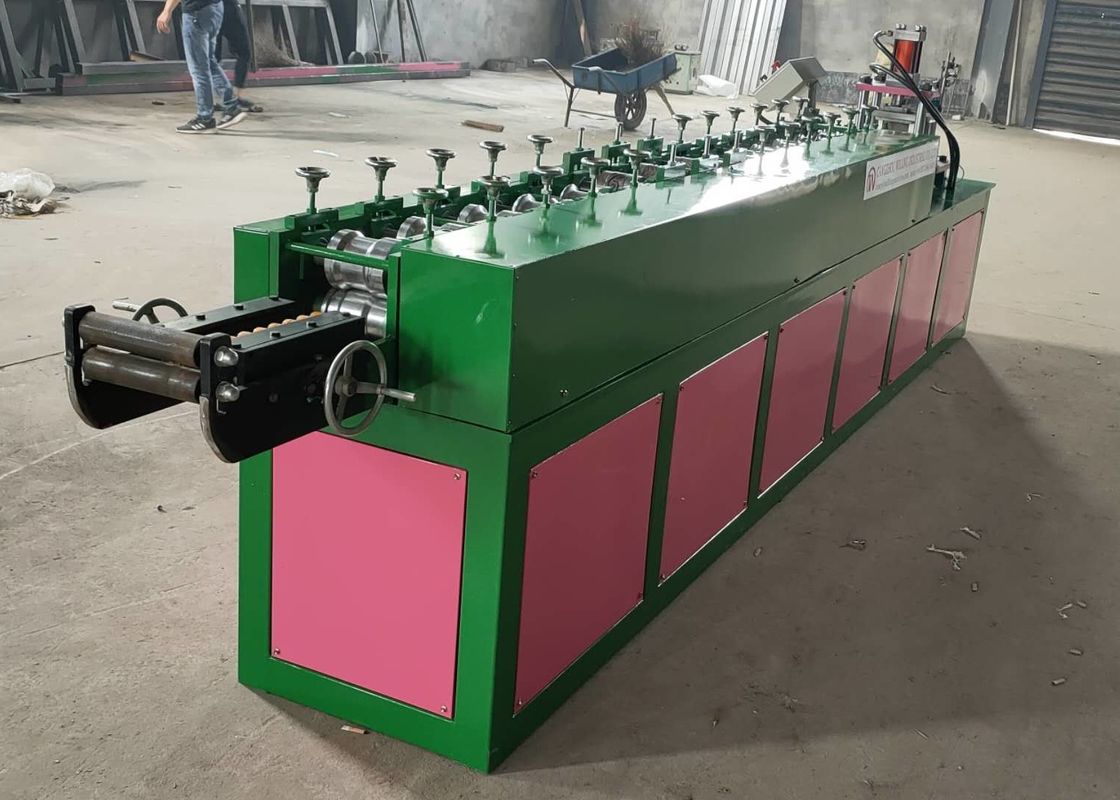

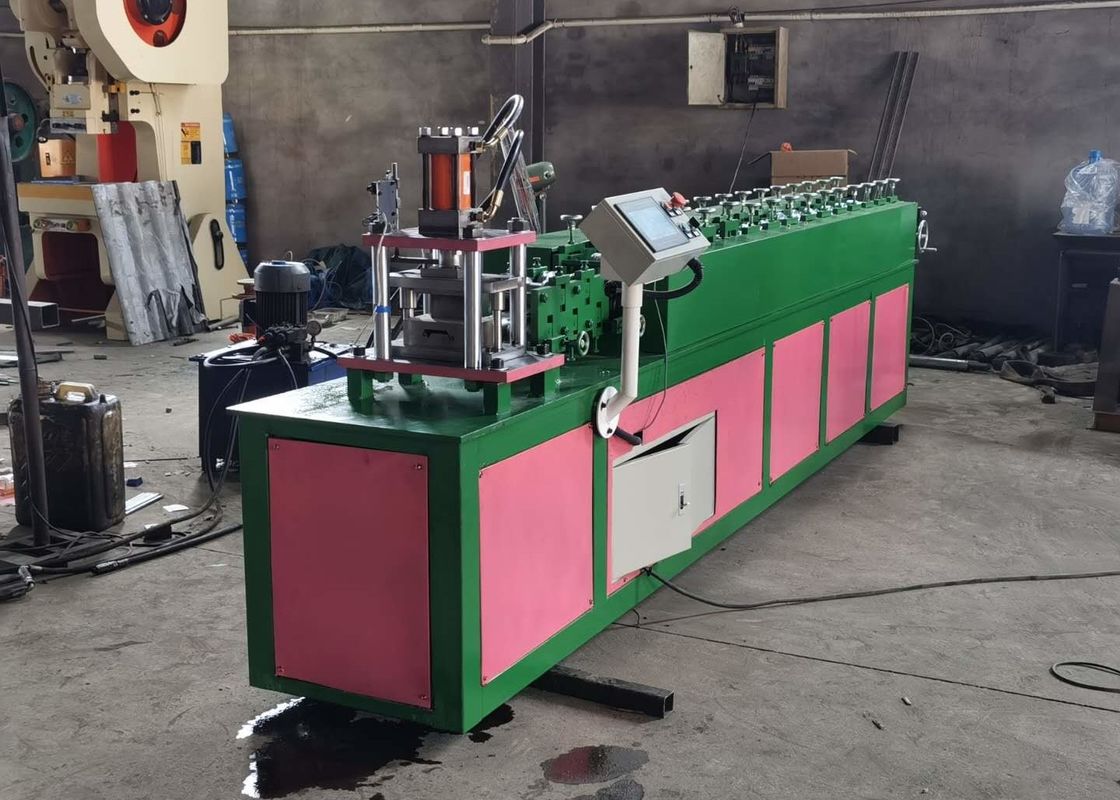

Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine 0

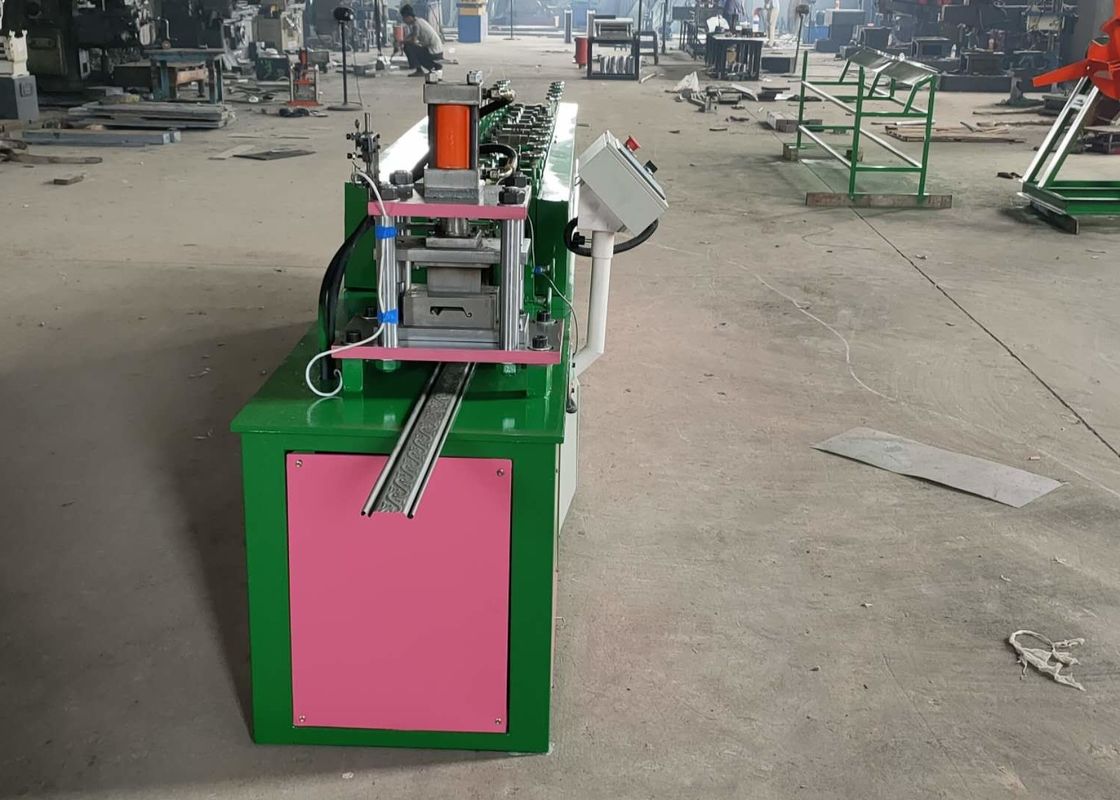

Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine 1

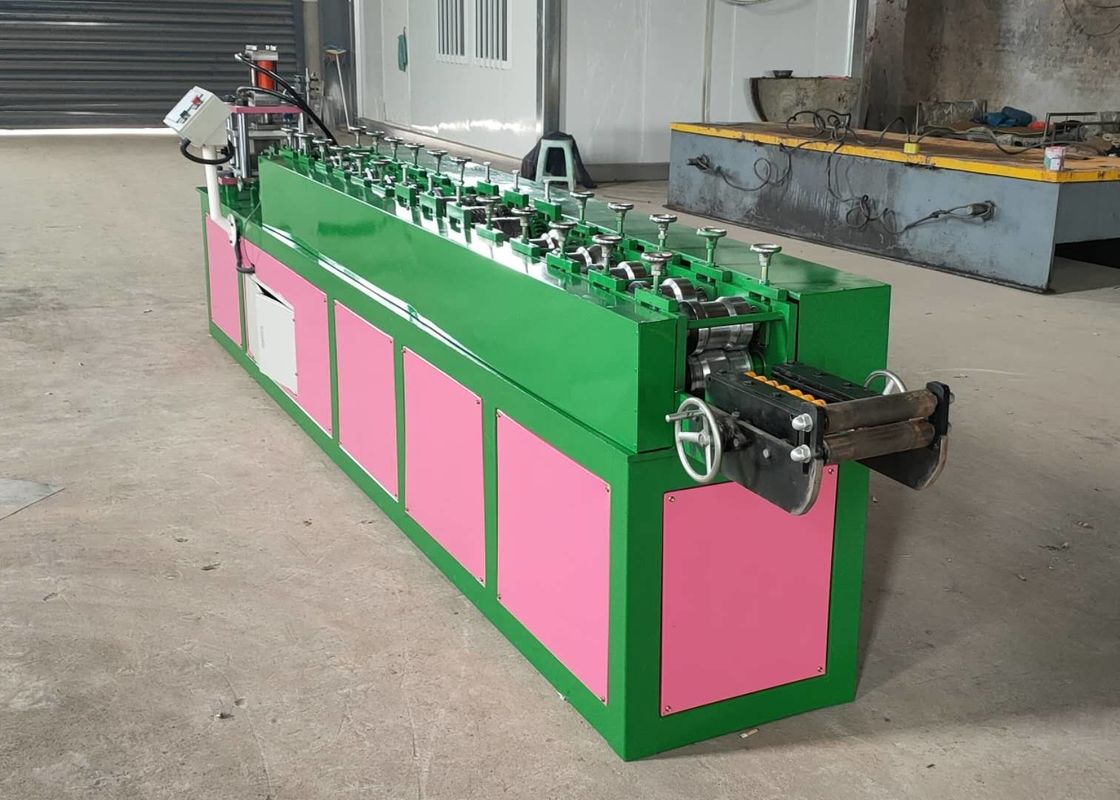

Metal Speed 20-30m/Min Rolling Shutter Door Slats Roll Forming Machine 2
