Ppgi 1250mm Prepainted Galvanized Steel Coils Printed

1250mm prepainted coil

ppgi prepainted coil

Tempat asal:

CINA

Nama merek:

polygold,discovery

Sertifikasi:

soncap,ISO,SGS

Nomor model:

Hubungi Kami

Minta Penawaran Harga

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed

Detail Produk

Menyoroti:

1250mm prepainted coil

ppgi prepainted coil

Syarat Pembayaran & Pengiriman

Kuantitas min Order

25 Ton

Harga

usd600-1000/ton

Kemasan rincian

KEMASAN BERDIRI EKSPOR

Waktu pengiriman

7-15 hari setelah menerima setoran

Syarat-syarat pembayaran

L/C, T/T

Menyediakan kemampuan

10.000 ton per bulan

Produk terkait

Video

Colorful Decorative 0.35mm Stone Coated Metal Roofing Tiles

Dapatkan Harga Terbaik

Video

Metal Stone Coated 1340*420mm Prepainted Galvanized Steel Roof Tile

Dapatkan Harga Terbaik

Video

Color Stone Prepainted Galvanized Steel Coated Metal Roofing Tiles

Dapatkan Harga Terbaik

Cold Rolled 1200mm Width 0.13mm Color Steel Coil

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Ppgi Steel Coil Price Shandong Coils Prepainted Galvanized Printed

Products Specifications

Brand	Polygold
Product DESC.:	Galvanized Steel / Galvalume Steel / Aluminum
Base Metal:	Galvanized Steel Coil(GI), Prepainted Galvanizeded Steel Coil (PPGI), Al-Zn coated steel coil(GL, PPGL)
Thickness:	0.12-1.2mm
Width:	600-1250mm
Length:	600-12000mm
Coil ID:	508mm,610mm
Coil weight	2.5 tons – 5.0 tons
Zinc coating weight:	20-275g/m2
Surface protection:	PE, PVC, PVDF ,SMP,HDP
Surface treatment:	Chromate, oil/unoil, bright finish, spangle, anti-finger print
Type:	sheet,coil
Color:	Ral,NCS,Pantone,acording clients sample
Technology:	Cold rolled
Capacity:	5000T/Month
MOQ:	20 Tons
Price Terms:	FOB, CNF, CIF
Payment Terms:	L/C, T/T
Lead time:	7-30 Days
Delivery port:	Qingdao
Packaging:	Standard Safety Package
Grade:	Q195-Q235 and SPCC, SPCD, SPCE, SGCC ,CGCC,(DX51D+Z), SGCD, (DX52D+Z), etc.
Standard:	DIN, JIS, EN, ASTM, GB
Certificate:	ISO, SONCAP, SGS
Paint Top	15-35Microns
Paint Back	5-35Microns

Sectional Structure

Product Sectional Structure

Item	Type	Featur
Protection Film	Polyethylene	Protecting from scratches and contamination
Clear Varnish	Polyester	Protecting printing layer and enhances the appearance of the surface
Print	PVDF link	Various printing patterns,3 color overprint
Top Coat	PE/SMP/HDP/PVDF	Chemical resistance, formability and colors multiformity
Primer Coat	Polyester	Workability, corrosion resistance and adhesion to the primer coating
Pre-treatment	Crfree Passivation	Good adhesion and corrosion resistance
Substrate	GI,GL,EG,CR	Galvanized Steel, Aluzinc Steel, Electro-galvanized Steel, Cold Rolled Steel
Pre-treatment	Crfree Passivation	Good adhesion and corrosion resistance
Back Coat	Epoxy Resin	Corrosion resistance and adhesion to the substrate

Color Slection

The RAL chart is now used worldwide to specify the exact colour requirements. It is widely used in production of PPGI for denoting the colour reference.

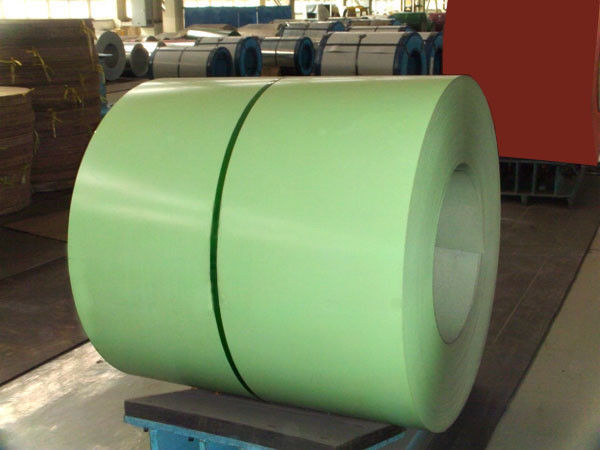

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed 0

Products Photos

Products Photos

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed 4

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed 5

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed 6

Applications

Applications:

Corrugated steel sheets are roll formed by roll forming machine. With the great benefits of light weight,high strength,rich colors and easily installation, they are widely used in industrial and civil buildings, warehouse, large scale steel structure houses and mobile homes, roof, walls, interior and exterior decoration, etc

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed 7

packaging

Packaing and Loading

Coil Packaging

Container Loading

Ppgi 1250mm Prepainted Galvanized Steel Coils Printed 10

Shipping to worldwide
