13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

deck floor roll forming machine

metal roof roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

840

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Ketebalan:

0,5-0,6 mm

Nama Produk:

13 Baris Tipo Teja Americana Mesin Roll Forming Atap Genteng Normal

Pembentukan kecepatan:

3-4m/mnt

Lebar bahan:

1000mm

Jenis ubin:

Baja Glasir Berwarna, Baja, mesin roll forming/mesin bahan bangunan, Berwarna

PLC:

DETLA

Menyoroti:

deck floor roll forming machine

metal roof roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

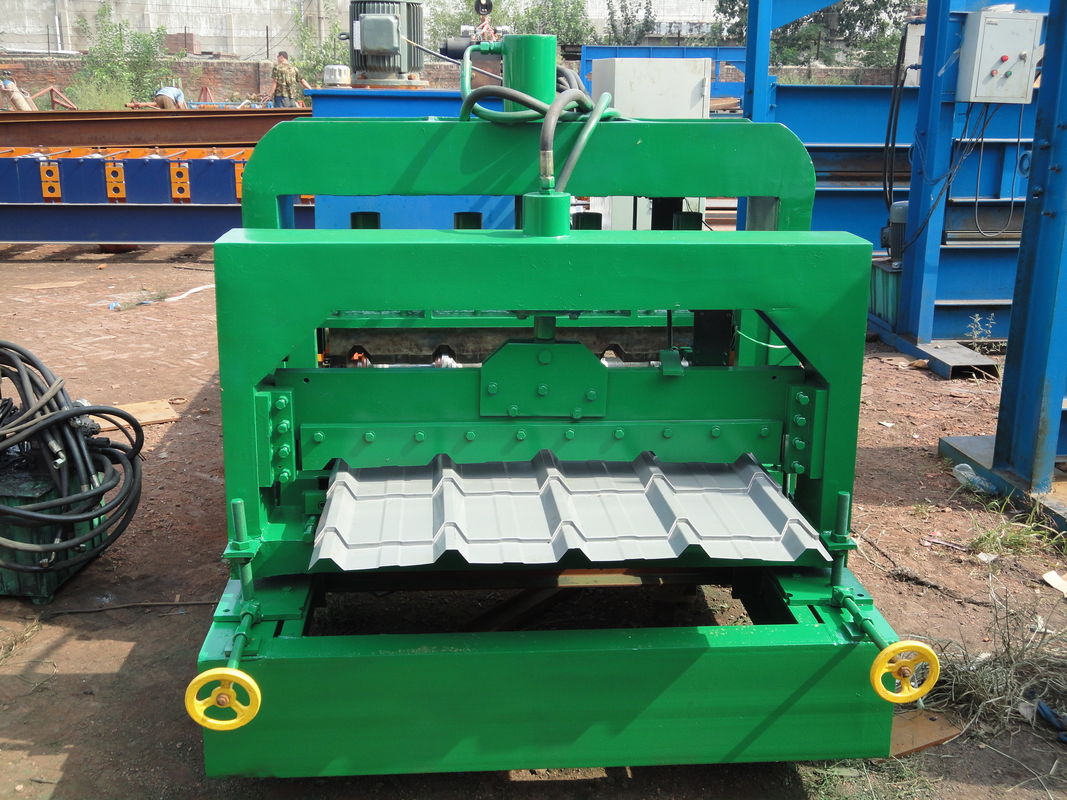

13 Rows Tipo Teja Americana Normal Tile Roof Roll Forming Machine

The raw material of theTipo Teja Americana Normal Tile Roof Roll Forming Machine Tile Roll forming machine is PPGI,GI,AL.

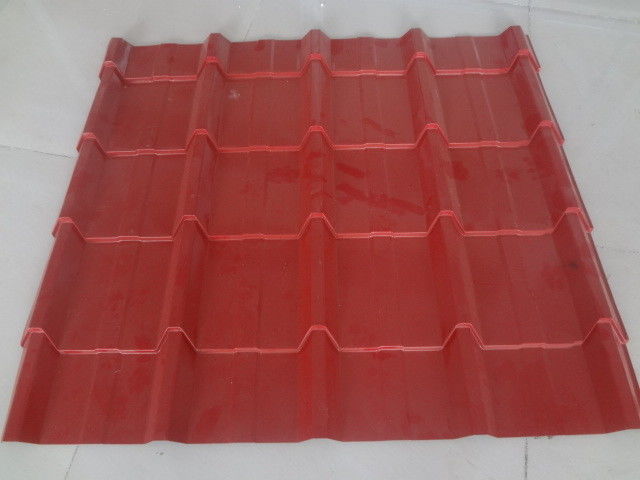

Tipo Teja Americana Normal Tile Roof Roll Forming Machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.

Equipment Detailed Parameters:

No
1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1000mm
3	Rows of rollers	13rows
4	Appearance size	650015501200mm
5	Total power	Main motor +Hydraulic station power 7.5kw with cooling fan
6	Thickness of raw material	0.5-0.6mm
7	Productivity	3-4m/min
8	Diameter of shaft	￠70mm
9	Voltage	380V 50Hz 3phases
10	Big frame	350H steel
11	Middle plate	16mm

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile 0
