Name: Omega Channel Low Noise CZ Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Saluran omega
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Omega Channel Low Noise CZ Purlin Roll Forming Machine

c purlin roll forming machine

z purlin roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Saluran omega

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming CZ Purlin Kebisingan Rendah Saluran Omega

Bahan mentah:

PPGI, Galvanis

Kecepatan:

15-20m / mnt

Ketebalan material:

1 mm - 3 mm

Berat:

8 ton

Jaminan:

1 tahun

Kekuatan:

15kw

Sistem Pengendalian:

PLC

Menyoroti:

c purlin roll forming machine

z purlin roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

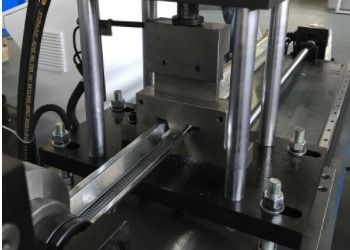

Omega Channel Low Noise CZ Purlin Roll Forming Machine

Omega Channel Low Noise CZ Purlin Roll Forming Machine is used to produce the furring channels, the ceiling batten channel, the roofing batten channel for housees. Furring Channel, Roof Ceiling Batten Roll Forming Machine can work at the speed of 15-20 meters per minute, with servo motor tracking cutting. Machine body is pillar structural, with safety protection cover. There are two encoder to measure the length of the cutting productus, PLC is world famous PLC system.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	14 Raws
5	Dimension	650013001200
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Omega Channel, Roof Ceiling Batten Roll Forming Machinecan produce the roofing batten and ceiling batten with the sizes 40mm, 43mm, 61mm and any other sizes you need.

we can help customer to deisgn the machine according to different requirement of the logo punching, embossing, and we can work together in a team for customer to work out the good profile with customer's factory's special charactors.
