High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft

High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft

galvanized double deck roll forming machine

1450mm double deck roll forming machine

high efficiency double layer forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

1450

Hubungi Kami
Minta Penawaran Harga
High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft
High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft
Detail Produk
Bahan mentah:
Lembaran PPGI/Galvanis
Ketebalan:
0,3-1,0mm
Dimensi (P*L*T):
7750mm*1250mm*1200mm
Nama Produk:
1450mm Lebar 85mm Poros Atap Dek Ganda Mesin Roll Forming Untuk India
Pembentukan kecepatan:
8-15m/mnt
Lebar bahan:
1450mm
Menyoroti:

galvanized double deck roll forming machine

,

1450mm double deck roll forming machine

,

high efficiency double layer forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
30 set per bulan
Produk terkait
Harga bagus High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

1450mm Width 85mm Shaft Double Deck Roof Roll Forming Machine For India



To meet the requirements for roll forming two different profiles in a limited plant area with quick product changeover, We have various kinds of double layer roll forming machine.
The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can’t produce the 2 profiles at the same time.



Equipment Detailed Parameters:

No. Item Description
1 Coil Width:1450mm
2 Forming speed 8-15 m/min (not including cutting time)
3 Roller Stations 12 stations & 16 stations
4 Material of Roller 45# steel finish machining, plated hard chromium surface
5 Material of Main Shaft 45# steel finishing machining and then slack quench processed
6 Material of Shaft 85 mm 45#steel forged
7 Driven Motor Power 11 KW
8 Hydraulic Station Power 3 KW
9 Hydraulic Station Pressure 12.0 Mpa
10 Electrical Control System Panasonic PLC
11 Dimension (L*W*H) 7750mm*1250mm*1200mm
12 Material of Cutter GCr12
13 Driving Mode single chain 1 inch
14 Material Thickness 0.3-1.0mm
15 Power Supply 380V, 60HZ, 3 PHASES
16 Cutting accuracy ±2 mm

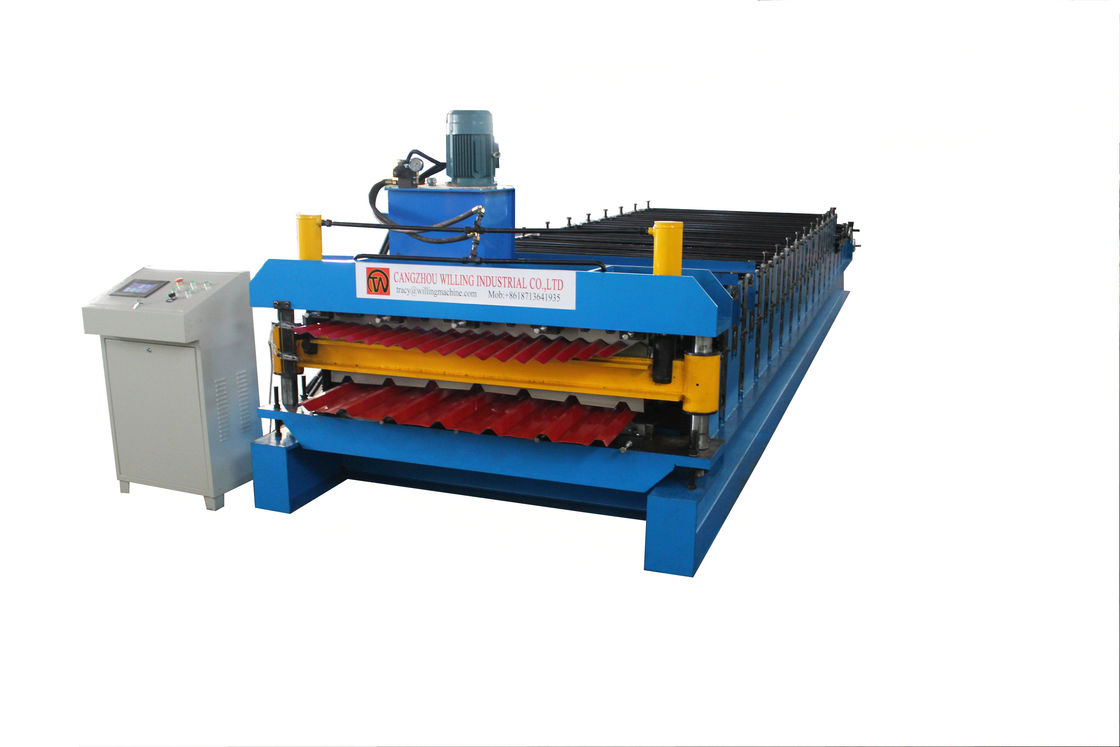

High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft 0

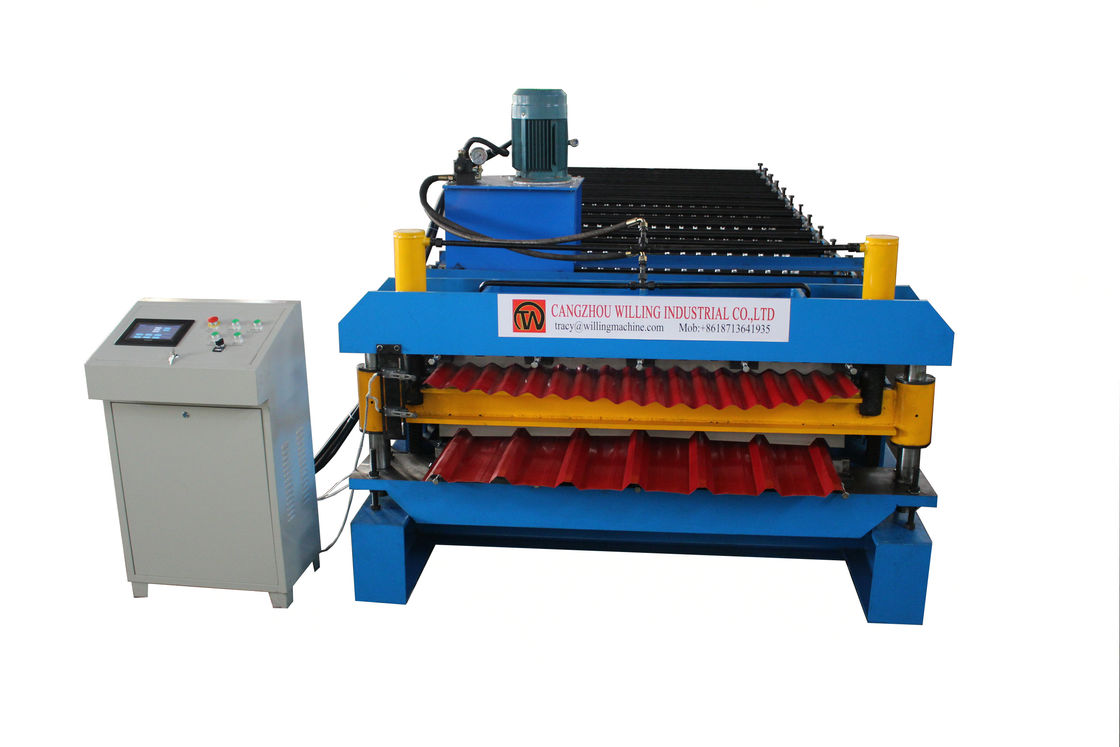

High Efficiency Double Deck Roll Forming Machine 1450mm Width 85mm Shaft 1
