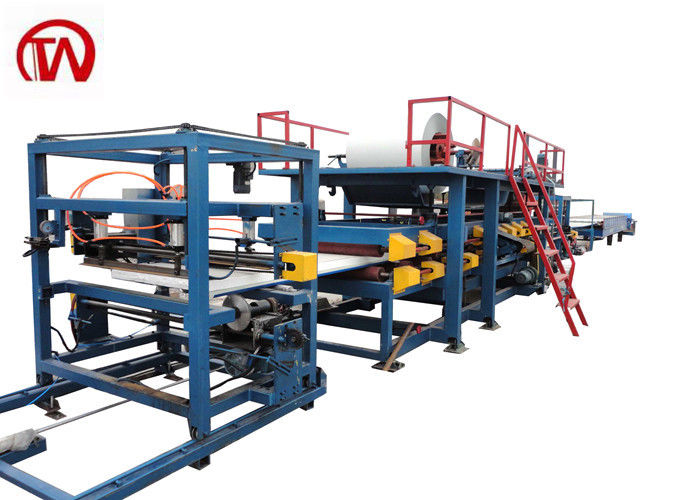

Name: Heavy Duty Sandwich Panel Production Machinery Energy Saving 32 KW 380V 50Hz
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Panel sandwich wol batu
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Panel Sandwich >

Heavy Duty Sandwich Panel Production Machinery Energy Saving 32 KW 380V 50Hz

wall panel roll forming machine

sandwich panel production machinery

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Panel sandwich wol batu

Hubungi Kami

Minta Penawaran Harga

Heavy Duty Sandwich Panel Production Machinery Energy Saving 32 KW 380V 50Hz

Detail Produk

Nama Produk:

Bahan Isolasi Logam Konstruksi Mesin Roll Forming Panel Sandwich Wol Batu

Voltase:

380V 50Hz 3fase, 380V Atau Sesuaikan

Kecepatan kerja:

10-15 m/mnt

Jaminan:

1 tahun

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan teknis video, Layanan pemeliharaan d

Kondisi:

Baru

Menyoroti:

wall panel roll forming machine

sandwich panel production machinery

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

45 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Dapatkan Harga Terbaik

Eps Rock And Wool Sandwich Panel Production Machine For Customer Requirements

Dapatkan Harga Terbaik

32KW Hydraulic Motor Power Sandwich Panel Roll Forming Machine with Thickness 50-300mm

Dapatkan Harga Terbaik

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Metal Insulation Materials Construction Rock Wool Sandwich Panel Roll Forming Machine

This equipment adopts advanced production technology, which integrates gas, electricity and machinery. It is a special mechanical equipment for processing color steel heat-insulating composite panels. The working speed is stepless speed regulation, which can produce composite panels at one time. Machine, forming machine, compound machine (crimping, glue spraying, heating, bonding, crimping, slotting, trimming, cutting) are necessary equipment for the production of roofs and wall panels in industrial plants, warehouses, etc.

Profile

Heavy Duty Sandwich Panel Production Machinery Energy Saving 32 KW 380V 50Hz 0

Heavy Duty Sandwich Panel Production Machinery Energy Saving 32 KW 380V 50Hz 1

PS: The machine can produce both rock wool composite plate and foam composite board.

Specification

No.	Item	Description
1	Dimensions (LWH)	400000 mm2250 mm2500 m
2	Steel Thickness	0.25 mm- 0.8 mm
3	Sandwich Panel Thickenss	50 mm - 300 mm
4	Roller Station	Up layer: 13 rows. Down layer: 14 rows
5	Working Speed	4 m /min
6	Power	Main motor power: 4kw . Flying saw power: 2*0.75kw
7	Total Power	32 KW
8	Machine Weight	22 tons
9	Steel Coil Width	1000 mm 1200 mm 1250 mm
10	Hydraulic motor power	15 kw
11	Cutting Accuracy	±2 mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 45 working days after the down payment is received.

Heavy Duty Sandwich Panel Production Machinery Energy Saving 32 KW 380V 50Hz 2
