Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine

metal roof panel machine

roofing sheet manufacturing machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Ketebalan:

0,25-0,8mm

Dimensi (P*L*T):

6700mm*1550mm*1300mm

Nama Produk:

Mesin Roll Forming Atap Dinding Lembaran Trapesium Multi Ribs

Pembentukan kecepatan:

20-30m/mnt

Lebar bahan:

1250mm

Jenis ubin:

Atap dan dinding

Menyoroti:

metal roof panel machine

roofing sheet manufacturing machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine

As a professional manufacturer,we can make China Roof Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.

Equipment Detailed Parameters:

No.	Item	Description
1	Raw material Standard	1250mm
2	Working Speed	8-15m/min (not including cutting time)
3	Roller Stations	14 stations
4	Material of Roller	45# steel quenching process and chrome coated
5	Material of Main Shaft	45 steel forged,
6	Material of Shaft	70 mm forged 45#steel, quenching process
7	Main Motor Power	4KW
8	Electrical Hydraulic Station Power	4KW
9	Hydraulic Station Pressure	12.0 Mpa
10	Electrical Control System	PLC Panasonic Japan
11	Dimension (LWH)	6700mm1550mm1300mm
12	Material of Cutter	Cr12 Mov HRC 58-62
13	Driving Mode	single chain 1 inch
14	Material Thickness	0.25-0.8mm
15	Cutting accuracy	±2mm
16	Power Supply	380V, 60HZ, 3 PHASES

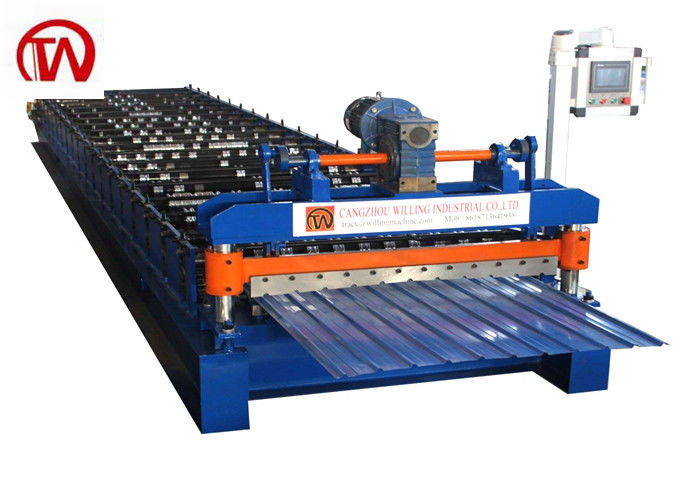

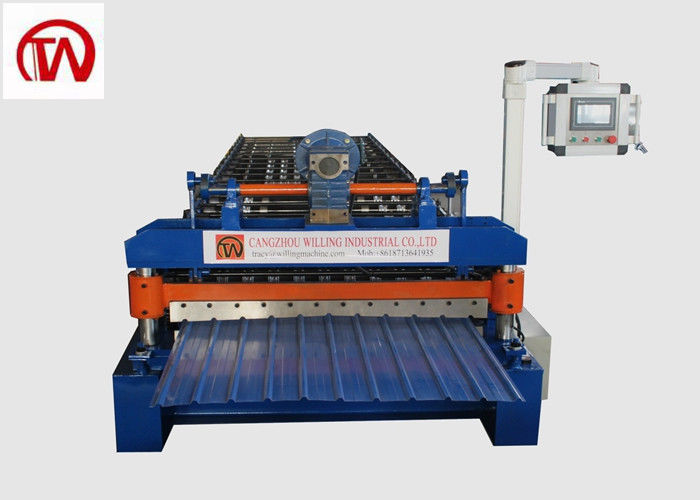

Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine 0

We are the most professional in China,we do our best to benefit for you,our machines are best-quality;

From the photo seeing :All kinds of tile type machine we did for customers ;

We lengthen the plate beside the machine to make the machine strong during working;

When you visit and come to China ,we can teacher you how to use it ;

Appear any questions ,we will try our best help you deal with ;

Meanwhile ,if any parts go broken and not artificial damage ,we will send you new one with free.
