Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness

Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness

wall panel roll forming machine

sandwich panel making machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

1100

Hubungi Kami
Minta Penawaran Harga
Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness
Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness
Detail Produk
Bahan mentah:
PPGI/AL
Ketebalan:
0,5-0,6 mm
Dimensi (P*L*T):
6500*1550*1200mm
Nama Produk:
1100 Mesin Roll Forming Atap Genteng Mengkilap Monteray Untuk Eropa
Pembentukan kecepatan:
3-4m/mnt
Lebar bahan:
1250mm
Menyoroti:

wall panel roll forming machine

,

sandwich panel making machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
30 set per bulan
Produk terkait
Harga bagus 6m Automatic Stacker for Roof Sheet Roll Forming Machine on line

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine on line Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows on line Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik
Harga bagus 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows on line Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

1100 Monteray Glazed Tile Roof Roll Forming Machine For Europe



The raw material of the glazed tile forming machine is PPGI,GI,AL.
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.



Equipment Detailed Parameters:

No





1



 Suitable Material PPGI (235Mpa)

2



 Width of the raw material 1250mm
3 Rows of rollers 13rows
4 Appearance size 6500*1550*1200mm
5

Total power



 Main motor +Hydraulic station power 7.5kw with cooling fan
6 Thickness of raw material 0.5-0.6mm



7



Productivity

 3-4m/min
8 Diameter of shaft ￠70mm

9



 Voltage 380V 50Hz 3phases
10 Big frame 350H steel
11 Middle plate 16mm

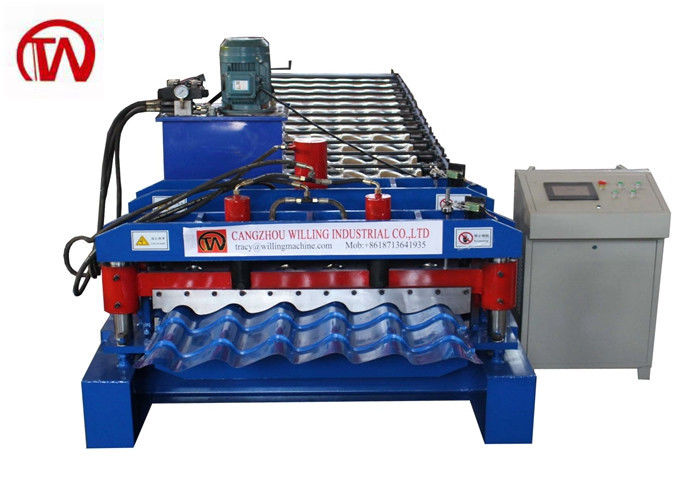

Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness 0

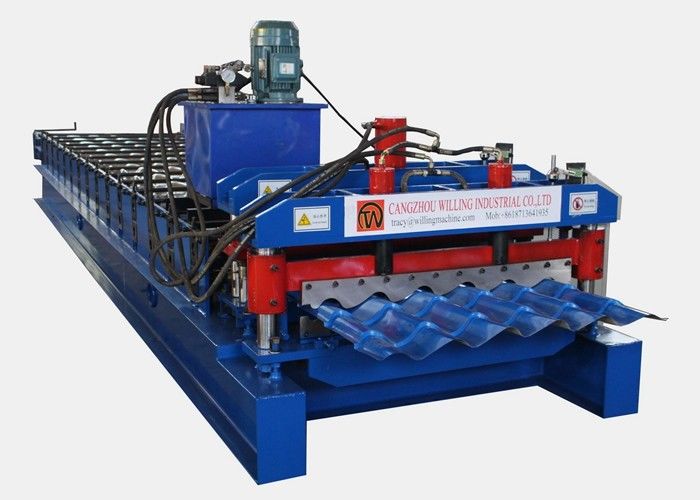

Outdoor Decorative Glazed Tile Roll Forming Machine 0.5-0.6mm Thickness 1
