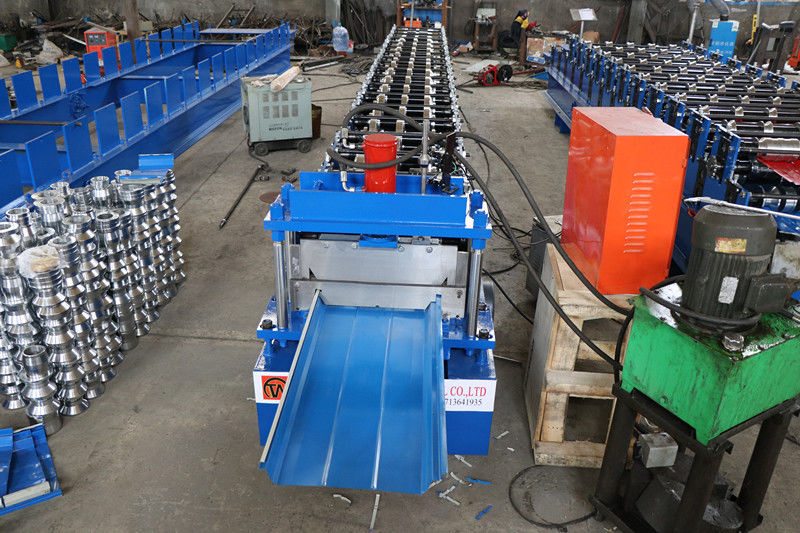

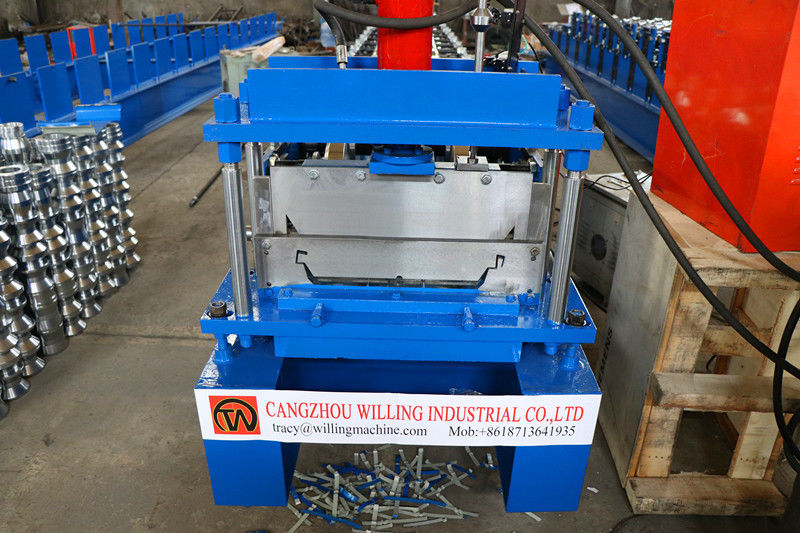

20 Stations Standing Seam Metal Roof Machine 610mm Width 0.5-0.8MM Thickness

metal roof panel machine

roofing sheet manufacturing machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

610

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

20stasiun Mesin Roll Forming Atap Balok Berdiri Lebar 610mm untuk India

Bahan mentah:

Lembaran PPGI/Galvanis

Ketebalan:

0.5-0.8mm

Bahan poros:

bahannya adalah baja tempa 45#

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri

Menggunakan:

Atap

Menyoroti:

metal roof panel machine

roofing sheet manufacturing machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

20stations 610mm Width Standing Beam Roof Roll Forming Machine for India

1. Most popular use for aiport and metro project
2. No screw jointing

3. Seaming overlap

Equipment Detailed Parameters:

No.	Item	Description
1	Coil width	About 610mm
2	Working Speed	8-15m/min (not including cutting time)
3	Roller Stations	20 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Hardness of roller	HRC 58-62
6	Material of Main Shaft	45# steel finishing machining and then slack quench processed
7	Material of Shaft	70 mm 45#steel forged
8	Main Motor Power	5.5 KW
9	Electrical Hydraulic Station Power	4 KW
10	Hydraulic Station Pressure	12.0 Mpa
11	Electrical Control System	PLC Panasonic
11	Material of Cutter	Cr12 MOV
12	Hardness of cutter	HRC:58-62
13	Driving Mode	single chain 1 inch
14	Material Thickness	0.5-0.8mm
17	Power Supply	415V, 50HZ, 3 PHASES
18	Cutting accuracy	±2mm
