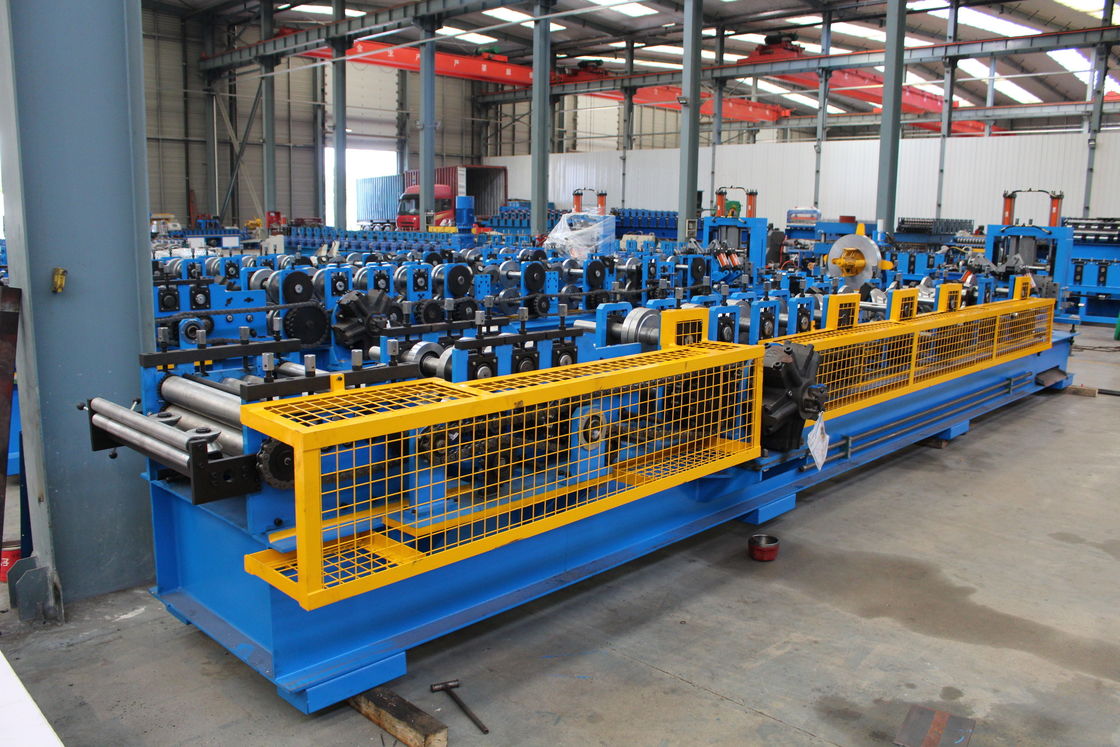

Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min

Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min

z purlin roll forming machine

purlin roll former

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Mesin C Purlin yang Dapat Disesuaikan Secara Manual

Hubungi Kami
Minta Penawaran Harga
Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min
Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min
Detail Produk
Nama Produk:
Mesin Roll Forming Atap Logam Manual yang Dapat Disesuaikan, Bantalan Purlin Kaki C Purlin
Bahan mentah:
Galvalum, Galvanis
Dimensi (P*L*T):
7000 mm*1500 mm* 1500
Ketebalan material:
1 mm - 3 mm
Kondisi:
Baru
Sistem Pengendalian:
PLC (merek impor)
Menyoroti:

z purlin roll forming machine

,

purlin roll former

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction on line Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik
Harga bagus Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings on line Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency on line Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel on line Video

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Full Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine

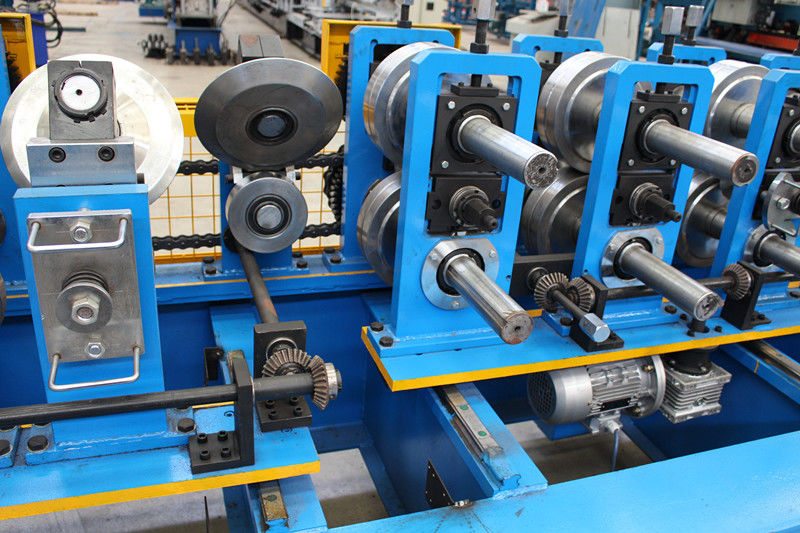

This model is manual adjusted the different sizes. There are many scales and spacers on the shaft .According the scale and change the counterpart spacer, then can produce the different sizes. Compare with the full automatic c purlin roll forming machine, need more time , more familiar operation.


Specification



No. Item Description
1 Coil Galvanized
  Material Thickness  1 mm- 3 mm
3 Working Speed 10- 20 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 6500 mm*1000 mm*1300 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Panasonic PLC (can be customized)
8

Drive Motor Power

 11 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

360V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



C Purlin Size



Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min 0



Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.







Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min 1
