Strong Roof Tile Roll Forming Machine Waterproof Metal Roof Panel Machine

metal roof panel machine

roofing sheet roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

960

Hubungi Kami

Minta Penawaran Harga

Strong Roof Tile Roll Forming Machine Waterproof Metal Roof Panel Machine

Detail Produk

Bahan mentah:

PPGI/AL

Ketebalan:

0,5-0,6 mm

Dimensi (P*L*T):

8500*1550*1200mm

Nama Produk:

Mesin Roll Forming Atap Genteng Berkilau Kecepatan Cepat Metropole Untuk Nigeria

Pembentukan kecepatan:

3-4m/mnt

Lebar bahan:

1200mm

Menyoroti:

metal roof panel machine

roofing sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Fast Speed Glazed Tile Roof Roll Forming Machine Metropole For Nigeria

The raw material of the glazed tile forming machine is PPGI,GI,AL.
Glazed tile roll forming machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.

Equipment Detailed Parameters:

No
1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1200mm
3	Rows of rollers	18rows
4	Appearance size	850015501200mm
5	Total power	Main motor +Hydraulic station power 7.5kw with cooling fan
6	Thickness of raw material	0.5-0.6mm
7	Productivity	3-4m/min
8	Diameter of shaft	￠70mm
9	Voltage	380V 50Hz 3phases
10	Big frame	350H steel
11	Middle plate	16mm

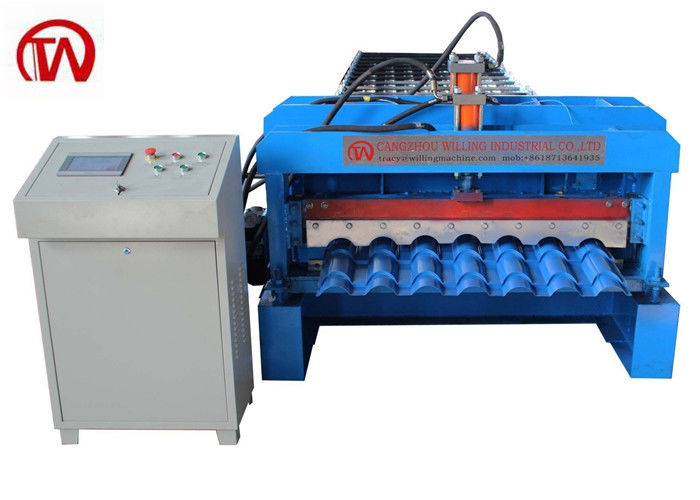

Strong Roof Tile Roll Forming Machine Waterproof Metal Roof Panel Machine 0

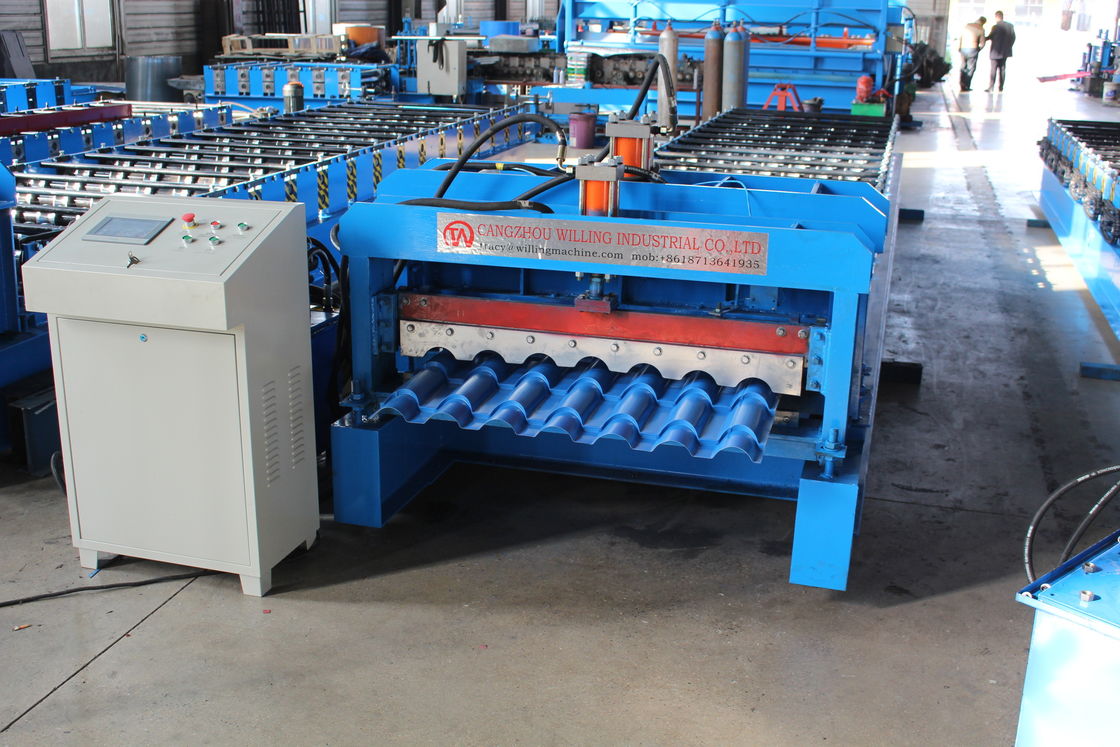

Strong Roof Tile Roll Forming Machine Waterproof Metal Roof Panel Machine 1

1. I am new in this field, do not know about the machine and do not know how to operate it.
The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.

If you need, we can also send the technician to your factory to fix the machine and train your workers.

2. What is included in the machine?
The whole line includes a manual decoiler, roll forming machine, product stand and spare parts box.

3. What's your payment terms?
40% as the deposit by T/T in advance, 60% as the balance payment by T/T after you inspect the machine and before delivery.

4. what is your delivery?
After we get down payment, we will arrange the production. About 30-45 working days for delivery.

5. How to visit your company?
1. Fly to Beijing Capital International Airport (PEK), we will pick you up from the exit, it is about 3 hours by car.

2. Take the bullet train to Cangzhou Xi station. We will pick you up, it is about 40 minutes to our factory.

6. Do you supply the coils?
No. We only make roll forming machines.

We will give you the contact information of our long-cooperate coil factory. You contact them directly. In this way, you can get the right coil and get the best price.
