High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine

High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine

metal roof panel machine

roofing sheet roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Multi - Kor / Bergelombang

Hubungi Kami
Minta Penawaran Harga
High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine
High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine
Detail Produk
Nama Produk:
Mini Rib Panel Metal Profil Rib Rendah Untuk Mesin Roll Forming Atap Panel Dinding
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium
Sistem Pengendalian:
PLC
Menggunakan:
Atap dan dinding
Dimensi (P*L*T):
7000 mm*1500 mm* 1500
Kekuatan (w):
4 kW
Menyoroti:

metal roof panel machine

,

roofing sheet roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

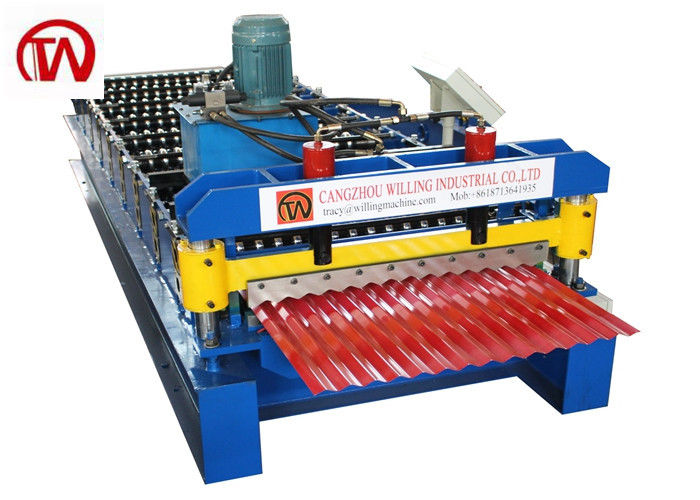

Multi - Cor Panel Metal Wall Profile Corrugated Panel Roof Roll Forming Machine

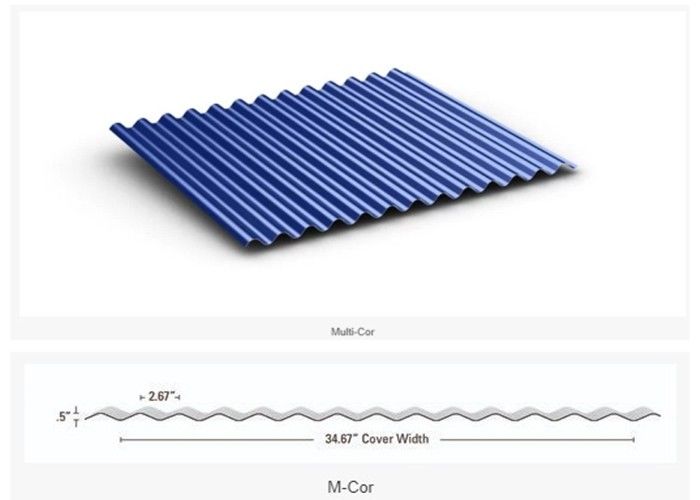

While quickly communicating their high-strength performance attributes, corrugated metal panels are reminiscent of yesteryear and simpler times. Consistent, rounded corrugations make Multi-Cor ideal panels to achieve nostalgic appeal whether installed as a wall, roof or interior accent panel.



For added aesthetic appeal, horizontal installations showcase corrugated design capabilities. Multi-Cor is similar in design, with M-Cor offering a more subtle rib height and configuration. We can design and produce different rib height, different width for the corrugated profiles roll forming machine.





Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 18-32 GA
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 13 Raws
5

Dimension (L*W*H)

 6500 mm*1500 mm*1500 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Panasonic PLC (can be customized)
8

Drive Motor Power

 5KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
