Name: Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Tulang Rusuk Mega
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

highway guardrail making machine

guard rail roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Tulang Rusuk Mega

Hubungi Kami

Minta Penawaran Harga

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

Detail Produk

Nama Produk:

USA Mega Rib Panel Atap Logam Dinding Dan Panel Atap Atap Mesin Roll Forming

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Kondisi:

Baru

Pembentukan kecepatan:

20 - 30 m/mnt

Sistem Pengendalian:

PLC

Jaminan:

1 tahun

Menyoroti:

highway guardrail making machine

guard rail roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

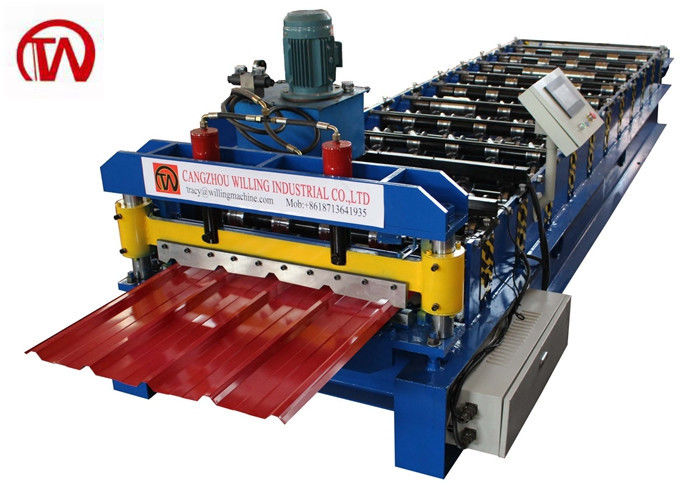

USA Mega Rib Panel Metal Roofing Wall And Roof Panels Roof Roll Forming Machine

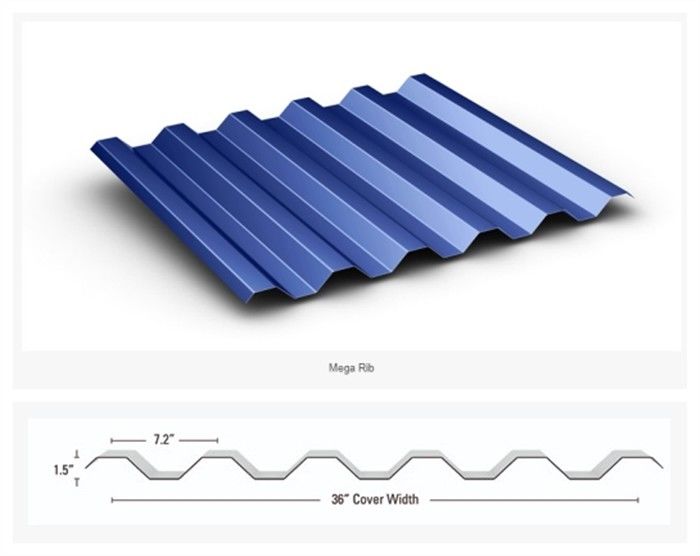

Mega-Rib is a 7.2 exposed fastener panel that provides optimum strength and spanning capabilities. Mega-Rib is a metal roof and wall panel that is equally well suited for industrial and commercial applications. Installed horizontally, Mega-Rib's bold ribs provide a hard to beat architectural statement.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	20-30 GA
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	19 Raws
5	Dimension (LWH)	6500 mm1500 mm1500 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
